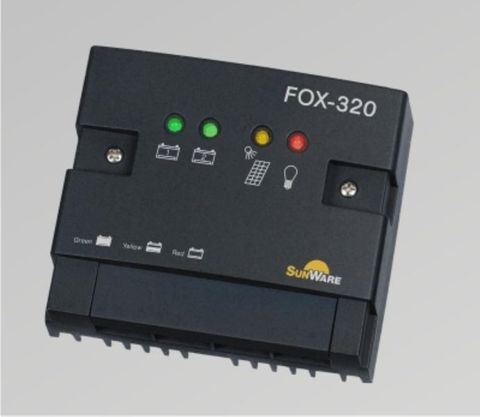

Sunware Solar Regulator X20 Series
The FOX-320 / FOX-220 solar charge regulators are for charging currents up to 20A, suitable for AGM, GEL and lead-acid batteries. With the FOX-220 one battery system can be charged and with the FOX-320 two different battery systems can be charged. The optimized charging characteristic, in combination with the hardware PWM control, results in a considerably faster and more gentle charging of the battery. Hazardous gassing and/or overcharging are safely prevented.
The deep discharge protection is designed for consumers up to a maximum current consumption of 20A. The controller automatically detects the system voltage. The active back-current blocking device ensures reverse current protection and allows an extremely low voltage drop between the module and the battery.
12/24VDC automatic recognition.
- Overcharge protection 20A is equal to solar modules of 340 Watt 12V (680W @ 24V)
- Discharge protection or night light function adjustable (max. 20A), shut-off threshold adjustable via FOX-MD1
- FOX-320 for 2 battery banks
- System voltage 12V or 24V (automatically)
- Battery type can be individually set for AGM, GEL and Lead-acid batteries
- Loads are supplied always of battery 1
- Charge ratio from B1 to B2 adjustable
- Extendable with remote display FOX-MD1
Related Products
-

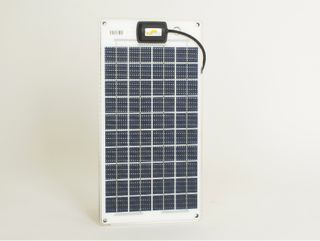

SW-20143, 14W 12V, 468 X 243 mm60232143RRP:$494.39 Incl. GST
-

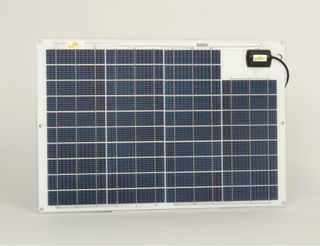

SW-40143, 14W 12V, 423 X 468MM60234143RRP:$494.39 Incl. GST
