Bluefin Underwater Light Mako
The Ultra compact design of the Mako M12 interchangeable flush mount light offers unrivalled performance producing 6100 fixture Lumens with almost unlimited mounting options thanks to the low profile bezel and short body design.

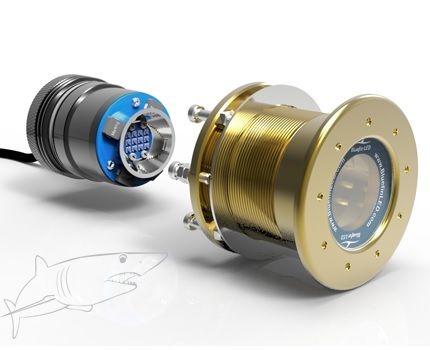

Thru Hull mounting provides a safe and secure fixing with the added benefit of a removable LED cartridge that can be serviced or upgraded from inside the hull eliminating the need to haul the boat. Simple installation thanks to our inbuilt driver technology, just two wires to connect saving time and money in labour fees, reverse polarity protection with active thermal trip. Guard X protective coating applied to the lens prevents marine growth build up. Suitable for transom, side and under hull mounting on all types of hull.
Suitable for boats up to 20m, 65ft. Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls.
Mounting Type: Thru-Hull Interchangeable
Hole cut out size: 63mm
Maximum Lamp Lumens: 9,100 & 17,300 (M24CC)
Fixture Lumens:
- M12: 7,000
- M24: 7,000
- M24 CC: 7,800
Max Wattage: 70W
Typical Life Expectancy: 50,000 hours
Voltage: 12V or 24V
Power Draw: 5.1A 12V / 2.6A 24V
Protection: Over / Under Voltage, Over Current, Reverse Polarity protection, Thermal protection.
Fixture Profile: 4mm
Fixture Diameter: 85mm
Fixture Length: 110mm
Lens Type: Optical grade 8mm Borosilicate glass with Guard X coating
Fixture Material: AB2 Bronze with aluminium light engine cartridge
Beam Angle: 60 Degree
Warranty: 2 years
Type Approval: RINA IEC 60529
Available Colours:
- M12: Diamond White 6500k & Cobalt Blue
- M24: RGBW Colour change. Diamond White & Cobalt Blue.
Features: (M24) Endless colours, cycling, strobe, dimmer or sound to light
Suitable Use: Below the water-line only
Spacing: 1.2 - 2m
Driver Type:
- M12: Integral
- M24: Integral (Diamond White & Cobalt Blue) External IP67 Plug and play remote box with DMX/WIFI control. Must purchase the WIFI/DMX Controller for functions
Total weight: 1.5kg
Attached cable length: 2m
M12 Included in the box:
- In-line fuse holder & rated fuse
- Gel connector
- Inline Crimps
- Heat shrink
- Fixing Screws
- Template
- Installation instructions
M24 CC Included in the box:
- WIFI /DMX Driver box IP67
- In-line fuse holder & rated fuse
- Inline Crimps
- Heat shrink
- Template
- Installation instructions
