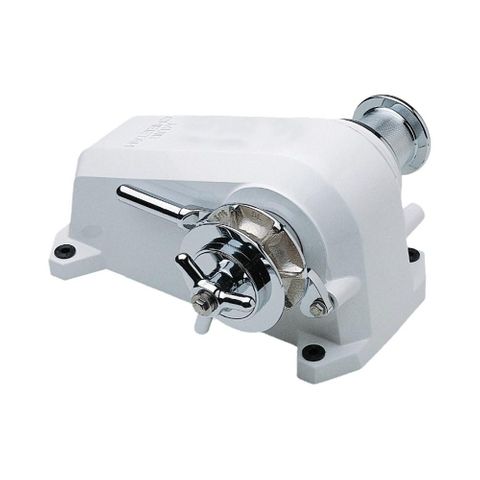

Muir Horizontal Cheetah Windlass
The HR2500 Cheetah horizontal windlasses are designed for vessels up to 17m and are ideal for installations where the chain box is not easily accessible. The windlass is completely above deck and have a long-life marine aluminium alloy housing and a powerful high-performance motor with a high-quality Italian gearbox. The housing protects the motor and gearbox from the harsh weather.
Standard Features:
- Manual operation is standard on all HR2500 units ensuring complete back up
- Gypsy lock/pawl
- Heavy duty marine grade
- Dual direction motors in 12 or 24V DC (optional AC & Hydraulic)
- Independent gypsy and tall capstan operation
- Durable marine grade white gloss finish on alloy housing
- Luxury chromed marine grade bronze & 316 Stainless steel running gear
- Stainless steel drive shaft
- 3 Year Limited Warranty
