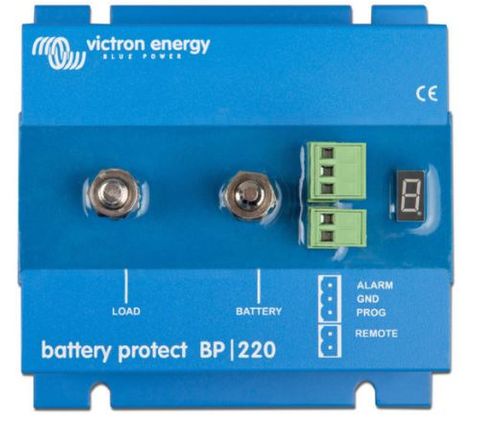

Victron Battery Protector

HTML Editor - Full Version

The Victron Battery Protect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

The Battery Protect is not designed for reverse currents from charging sources.

The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay.

The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

Code	Product Details	Stock	Price	Enquire
BPR000065400	BPR000065400 12V/24V 65A Stock Level: Available	Stock Level: Available	$65.46 Incl. GST	Enquire

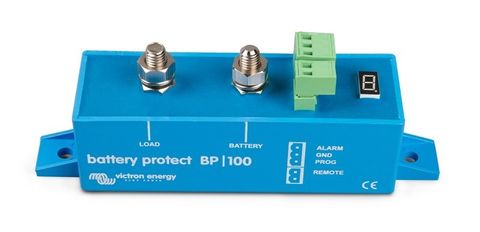

BPR000100400	BPR000100400 12V/24V 100A Stock Level: Please Enquire	Stock Level: Please Enquire	$96.06 Incl. GST	Enquire
BPR000220400	BPR000220400 12/24v 220A Stock Level: Available	Stock Level: Available	$163.70 Incl. GST	Enquire

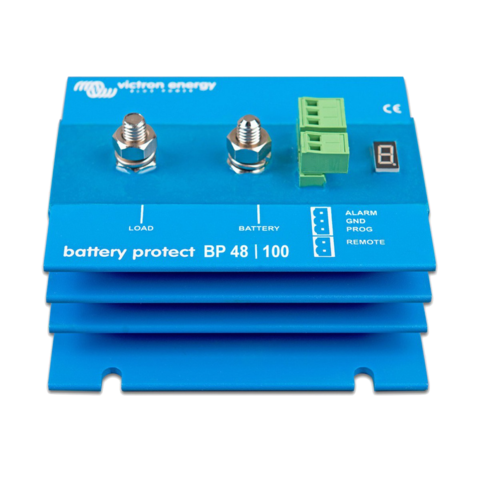

BPR048100400	BPR048100400 48V 100A Stock Level: Available	Stock Level: Available	$223.33 Incl. GST	Enquire
