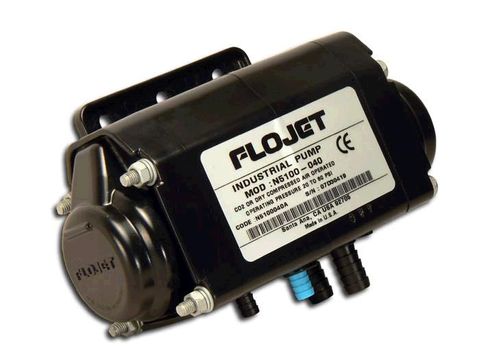

Flojet Air Operated Pump

Flojet Air or CO2 driven diaphragm pumps are available in a range of flow rates, pressure rates and material make up to suit your requirements.

Pumps can be run dry with-out failure and can handle liquids up to 49’C.

Pumps have a corrosion resistant sanitary design and are self-priming.

Code	Product Details	Stock	Price	Enquire
G573205A	G573205A Viton, 3/8 Barb, 26.5 LPM, Max Pressure 6.9bar (100psi) Stock Level: Available	Stock Level: Available	$679.59 Incl. GST	Enquire
G575215A	G575215A Santoprene, 1/2 Barb, 26.5 LPM, Max Pressure 6.9bar (100psi) Stock Level: Available	Stock Level: Available	$763.52 Incl. GST	Enquire
05100020A	05100020A Viton, 3/8 Barb, Variable up to 7.3 LPM, Max Pressure 5.2bar (75psi) Stock Level: Please Enquire	Stock Level: Please Enquire	$460.77 Incl. GST	Enquire

PN: G573205A & G575215A

Connections

Dimensions: - 116mm long, 82mm wide, 115mm high

Output: up to 26.5 litres/minute (5.9 gallons/minute). Maximum pressure 6.9bar (100psi)

Capable of passing solids up to 3.2mm diameter

Corrosion Resistant Sanitary Design

Self-priming up to 4.5m

Pump can run-dry and handle liquids up to 49ºC (120ºF)

Max. Air Supply Pressure 6.9bar (100psi)

Packaged Dimensions: L:15.00 x H:15.00 x W:12.00cm

Actual Weight

PN: 05100020A

Connections: Fluid, 9.5mm (3/8") hose - Air, 6mm (1/4") hose

Dimensions: 152mm long, 60mm wide, 102mm high

Output: infinately variable, up to 7.3 litres/minute (1.6 gallons/minute). Maximum pressure 5.2bar (75psi)

Auto demand starts pump when discharge valve is opened

Self-priming

Pump can run-dry and handle liquids up to 49ºC (120ºF)

Max. Air Supply Pressure 5.6bar (80psi)

No switch or bypass required

Actual Weight: 0.62 Kg (Approx. 0.87 Kg packed)
