Blue Sea Circuit Breaker C Series Flat Rocker - Double Pole AC
Features
- 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection.
- Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral.
- Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral.
- Circuit breakers will trip all poles if any one pole trips.
- “Trip Free” design cannot be held “ON” during fault current condition.

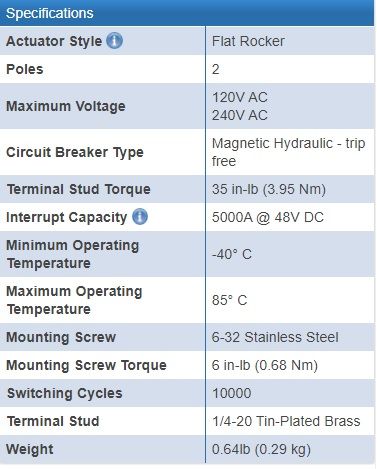

Specifications
- Actuator Style Flat Rocker
- Maximum Voltage 120V AC / 240V AC
- Circuit Breaker Type Magnetic Hydraulic - trip free
- Terminal Stud Torque 35 in-lb (3.95 Nm)
- Interrupt Capacity 5000A @ 48V DC
- Minimum Operating Temperature -40° C
- Maximum Operating Temperature 85° C
- Mounting Screw 6-32 Stainless Steel
- Mounting Screw Torque 6 in-lb (0.68 Nm)
- Switching Cycles 10000
- Terminal Stud 1/4-20 Tin-Plated Brass
