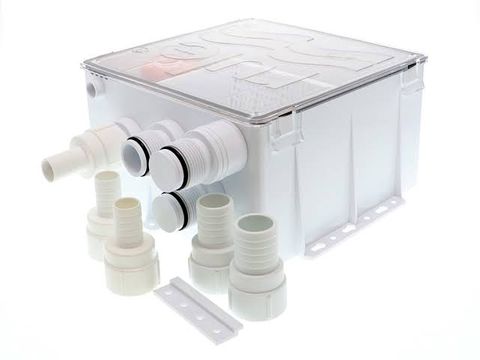

Rule Multi-Port Shower Sump Pump System
The Rule shower sump pump system is a compact, full capacity shower drain system available in 12 or 24 Volts. Automatically turns on when the water starts and shuts off when the water is removed, activated by a Rule-A-Matic float switch. Contains Rule 800gph Submersible pump and is ignition protected. Multi-port inlet. Straight or 90º Elbow with an Integral non-return valve to prevent back flow.
The Clip in, removable pump, strainer and cover allows easy cleaning and servicing.
Connections: For 19mm (3/4"), 25mm (1") or 29mm (1 1/8") bore hose on inlet and outlet. Straight or 90º Elbow

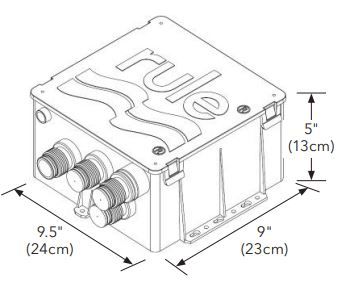

Dimensions: 230mm x 240mm x 130mm high.
Fuse Size: 12V - 5(Amp) / 24V - 4(Amp)
Output: 50LPM (11GPM). Max recommended discharge head 2.5m
Contains Rule 800 Submersible Pump controlled by a Rule-a-Matic float switch.
Clip in, removable pump, strainer and cover allows easy cleaning and servicing.
Sealed clear screw-down cover.
Integral non-return valve.
Packaged Dimensions: L:26.00 x H:14.00 x W:35.00cm
Actual Weight: 1.58 Kg (Approx. 2.08 Kg packed)
