Actisense OPTO-4 Serial Port Isolator

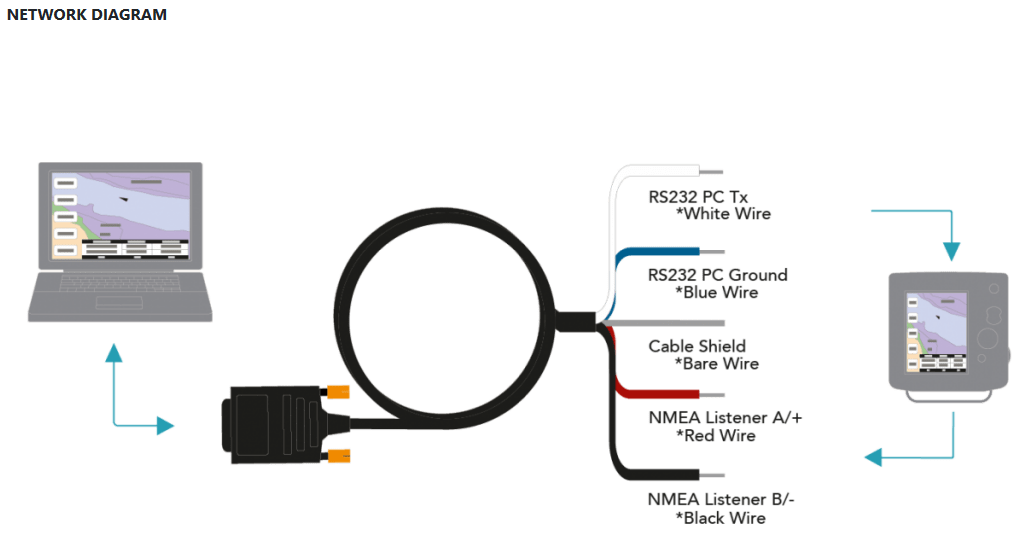

The Actisense OPTO-4 is a bi-directional interface cable which provides a safe and low cost method of connecting your PC to the NMEA 0183 network system to a standard 9-pin port serial port (RS232).
Suitable for noisy commercial environments, the OPTO-4 utilizes OPTO-isolation which protects the connected device against ground loops, so any potentially hazardous voltages on the NMEA 0183 bus do not cause damage to the PC hardware, offering the user complete peace of mind.
Features:
- One OPTO-isolated input
- One NMEA output
- Up to 115200 baud
- Port powered
- Shielded cable and case
Benefits:
- Protects PC from damage
- Water resistant cable.
- Ruggedized overmoulded case suitable for harsh environment
- Quick and easy to install
