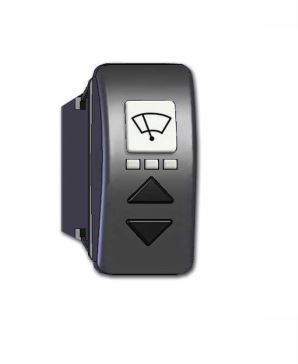

Electronic Wiper Control CT41EX
A compact, full function intelligent electronic wiper control switch. Control speeds (low, high, 3 levels of intermittent), engage a washing system or simply turn the wiper on and off with these micro-controller based intelligent switches that fit into most switch panels. LED’s on the switch indicate the selected mode, speed and intermittent setting. Works with most popular brands of wiper motors.
Power supply: 10-30V DC, Internal fuse: 4A PTC, Stand-by current: < 20mA, Motor output current: 4A max, Working temperature: -10°C to +50°C, Storage temperature: -20°C to +70°C, Inputs: parking signal, open in park position, Outputs: 1 slow speed, 1 high speed, 1 wash pump/solenoid positive pole.
| Model | 210341 |
| Nr. of wipers | max. 1 |
| W x L | 24 x 49,5 |
| Width mm | 24 |
| Suitable for | MD1, KW2 |

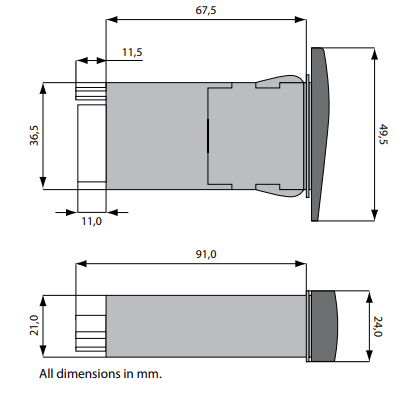

| Installation dimensions H x W x D | 36,5 x 21 x 90 |
| Cable length | 450 |
| L x W | 49,5 x 24 |
| Brand | Exalto |
| Model / type | Wipercontrol |
| Range | LD MD1 MD2 KW |
| Voltage DC | 12/24 |
| Max. current | 4 |
| Kind | Wiper controls CT41EX |
| Model | 210342 |
| Nr. of wipers | max. 2 |
| W x L | 24 x 49,5 |
| Width mm | 24 |
| Suitable for | MD1 232, 233, 235 |
| Installation dimensions H x W x D | 36,5 x 21 x 90 |
| Cable length | 450 |
| L x W | 49,5 x 24 |
| Brand | Exalto |
| Model / type | Wipercontrol |
| Range | LD MD1 KW |
| Voltage DC | 12/24 |
| Max. current | 4 |
| Kind | Wiper controls CT42EX |
| Model | 210342S |
| Nr. of wipers | max. 2 |
| W x L | 24 x 49,5 |
| Width mm | 24 |
| Suitable for | MD1 232, 233, 235 |
| Installation dimensions H x W x D | 36,5x21x90 |
| Cable length | 450 |
| L x W | 49,5 x 24 |
| Brand | Exalto |
| Model / type | Wipercontrol |
| Range | LD MD1 KW |
| Voltage DC | 12/24 |
| Max. current | 4 |
| Kind | Wiper controls CT42EX |
