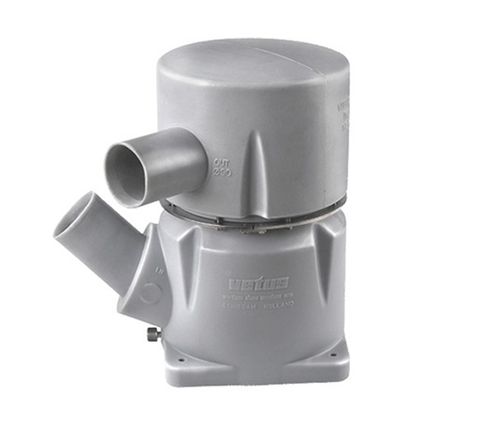

Vetus Plastic Waterlock MGS
Vetus Plastic Muffler MGS type, waterlock for water injected exhaust systems, with rotatable top. Made of corrosion-free synthetic materials. Excellent sound reduction. Capacity 75 litres.
This type of waterlock is designed for modern high performance boats with one or two large engines which have little space to spare in the engine room. The outlet connection at the top can rotate through 360º and the inlet connection is at an angle of 45º upward. Type MG can only be installed in water injected exhaust systems. Its body is entirely made of synthetic materials, therefore not susceptible to corrosion or galvanic action.

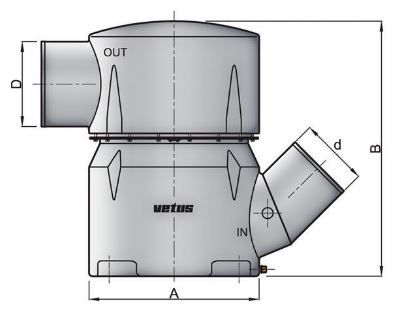

| MGS5455A | MGS5456A | |
| Capacity (LPM): | 75 | 75 |
| Diameter D (mm): | 127 | 152 |
| Diameter A (mm): | 400 | 400 |
| Diameter d (mm): | 127 | 127 |
| Length B (mm): | 700 | 700 |
