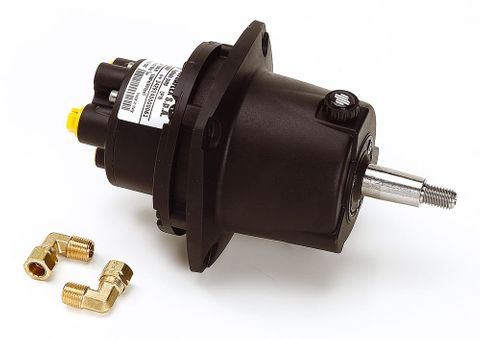

Ultraflex Helm Pump - Front Mount 18-20CC

Ultraflex Helm Pump - Front Mount 18-20CC

HTML Editor - Full Version

Features:

  • Built-in lock valve for positive rudder lock.
  • Integral relief valve for over-pressure protection.
  • 3/4" tapered stainless steel shaft.
  • Corrosion proof composite housing.
  • Easy accessible lock valve and shaft seal for replacement.
  • Includes 90° adjustable fittings for 3/8” tube.

Specifications:

  • Mounting   Front mount
  • Displacement/Revolution  18CC or 20CC
  • N­umber of Pistons   5
  • Relief Valve Setting   70 Bar - 1000 PSI
  • Maximum Wheel Dia.   508 mm-20"
  • Weight   3,6kg-8lbs

43048Y square flange permits to install the UP20F pump in an intermediate dashboard position

Code Image Product Details Stock Price Quantity Enquire
43180Y
Ultraflex Helm Pump - Front Mount 18-20CC
43180Y
U20F, 20CC Newer Model, 1/8 Balance Line
Stock Level:
Available
Stock Level:
Available
$903.44 Incl. GST
Enquire
43182C
Ultraflex Helm Pump - Front Mount 18-20CC
43182C
UP18F, 18CC
Stock Level:
Available
Stock Level:
Available
$751.44 Incl. GST
Enquire
