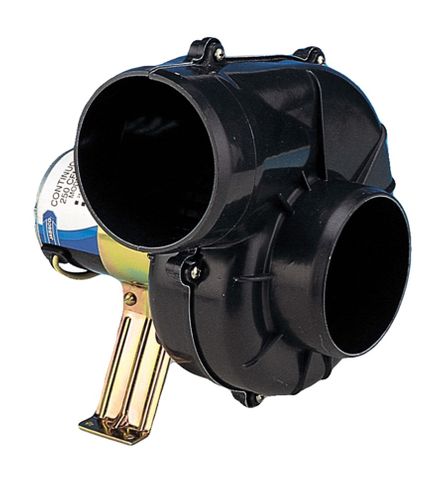

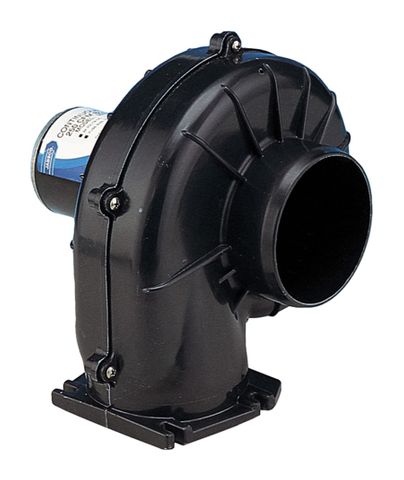

Jabsco 100mm Continuous Rated Blower

Jabsco 100mm Continuous Rated Blower

Continuous duty blower.

Blowers are designed to transfer fresh air from outside the boat into poorly ventilated spaces, displacing fumes and odours from galleys and toilet compartments, and fuel vapours from engine compartments.

Blowers can also be used as extractor fans, drawing out fumes so that fresh air is drawn in.

In either case, make sure that the space to be ventilated can 'breathe', or the blower will be ineffective.

Code Image Product Details Stock Price Quantity Enquire
35760-0092
Jabsco 100mm Continuous Rated Blower
35760-0092
100mm, 240CFM, Flange Mount, 12v
Stock Level:
Available
Stock Level:
Available
$878.27 Incl. GST
Enquire
35760-0094
Jabsco 100mm Continuous Rated Blower
35760-0094
100mm, 240CFM, Flange Mount, 24v
Stock Level:
Low Stock
Stock Level:
Low Stock
$913.51 Incl. GST
Enquire
35770-0092
Jabsco 100mm Continuous Rated Blower
35770-0092
100mm, 240CFM, Flex Mount, 12v
Stock Level:
Available
Stock Level:
Available
$1,009.08 Incl. GST
Enquire
35770-0094
Jabsco 100mm Continuous Rated Blower
35770-0094
100mm, 240CFM, Flex Mount, 24v
Stock Level:
Available
Stock Level:
Available
$913.51 Incl. GST
Enquire

Connections: For 100mm (4”) ducting

Dimensions (flange): 240mm long, 230mm high, 220mm wide

Dimensions(Flex): 230mm long, 250mm high, 240mm wide

Fuse Size: 15a 12v, 10a 24v

Maximum Current: 11a 12v, 6a 24v

Output: AIR FLOW  7 cu.m/minute (250 cu.ft/minute)

High volume intake or extraction blower for engine room duty on commercial vessels, charter yachts and other heavy-use installations

Outlet flange mounts directly on bulkhead, or Flexible mounting permits 360º adjustment of outlet direction

5,000-hour motor life

Packaged Dimensions: L:28.00 x H:34.00 x W:29.00cm

Actual Weight: 2.95 Kg  (Approx. 3.45 Kg packed)
