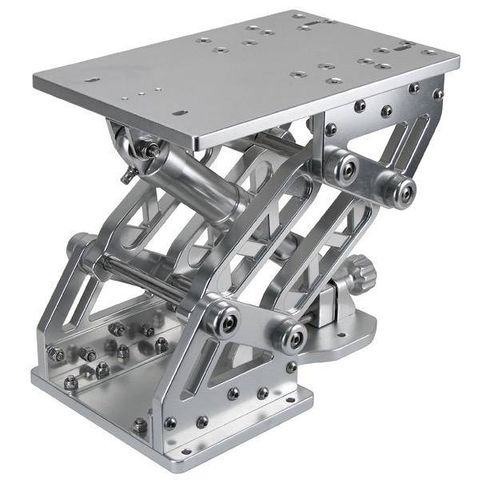

Relaxn Pedestal - Suspension Base

Relaxn Pedestal - Suspension Base

HTML Editor - Full Version

• Precision engineered suspension bases featuring SMS technology (Shock Mitigation System).
• Manufactured from 5052 Marine Grade aluminium for strength and high corrosion resistance.
• Anodised finished for increased protection against the harsh marine environment.
• Preloaded Nitrogen filled heavy-duty gas strut.
• CNC precision cut aluminium.
• All fastenings are 304G stainless steel.
• Nylon washers provide smooth, silent operation.
• Includes protection skirt.
• Stainless steel bushed pivot points.

Code Image Product Details Stock Price Quantity Enquire
293856
Relaxn Pedestal - Suspension Base
293856
Shock Mitigation Pedestal 330-380mm
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$3,325.52 Incl. GST
Enquire
293854
Relaxn Pedestal - Suspension Base
293854
Fixed Suspension 170mm
Stock Level:
Low Stock
Stock Level:
Low Stock
$2,344.71 Incl. GST
Enquire

Part No. 293854
Length: 335mm
Width: 180mm
Height: 170mm
Weight: Base 4.9kg
Aluminium Type: 5052 Marine Grade
Fastenings: 304G Stainless Steel & Nylon Washers
Rated Weight Setting: 60kg - 130kg
Shock Mitigation System: Preloaded Nitrogen Filled Gas Strut
Mounting Holes: 4 x Dia. 10mm
Overall Adjustable Height: Fixed Height
Strut Pressure: 784N
Shock Travel: 49mm



Part No. 293856
Length: 415mm
Width: 240mm
Height: 380mm
Weight: Base 15kg
Aluminium Type: 5052 Marine Grade
Fastenings: 304G Stainless Steel & Nylon Washers
Rated Weight Setting: 75kg - 150kg
Shock Mitigation System: Preloaded Nitrogen Filled Gas
Mounting Holes: 6 x Dia. 8.5mm
Overall Adjustable Height: Min 330mm to Max 380mm
Strut Pressure: 1421N
Shock Travel: 80mm
