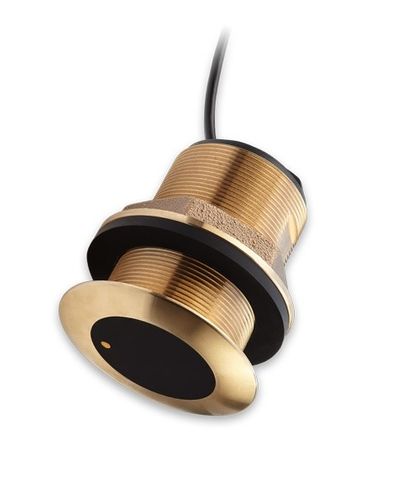

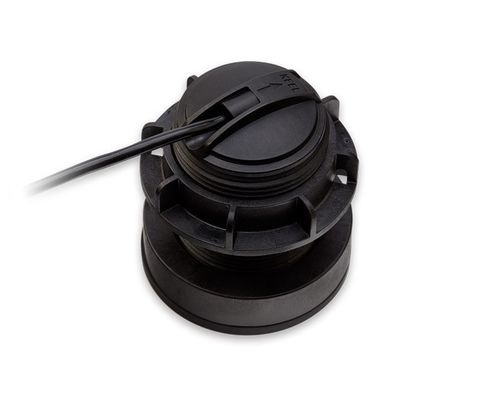

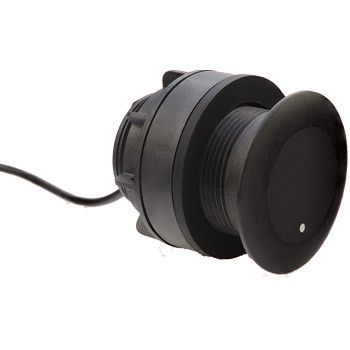

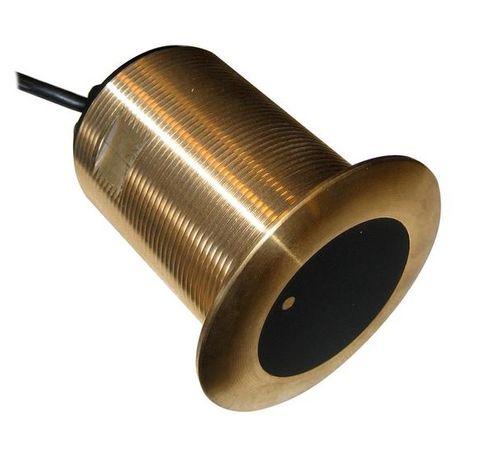

Raymarine CPT-S High CHIRP Thru-Hull Transducer

Raymarine CPT-S Through-Hull Flush Mount transducer is easy to install and offers high resolution sonar imagery and exceptional performance at speed. This single element conical CHIRP transducer provides a 25 degree fish targeting beam with a maximum depth range to up 900ft.
Compatible with the Axiom RV, Axiom Pro S, and Axiom Pro RVX with the addition of an A80490 adapter cable, this CPT-S transducer is a great add-on.

Available in bronze or plastic models, 0°, 12°, or 20° tilted elements

Code Image Product Details Stock Price Quantity Enquire
E70339
Raymarine CPT-S High CHIRP Thru-Hull Transducer
E70339
0° Tilted Element, Plastic
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$407.57 Incl. GST
E70340
Raymarine CPT-S High CHIRP Thru-Hull Transducer
E70340
12° Tilted Element, Bronze
Stock Level:
Low Stock
Stock Level:
Low Stock
$548.11 Incl. GST
E70341
Raymarine CPT-S High CHIRP Thru-Hull Transducer
E70341
20° Tilted Element, Bronze
Stock Level:
Low Stock
Stock Level:
Low Stock
$548.11 Incl. GST
A80446
Raymarine CPT-S High CHIRP Thru-Hull Transducer
A80446
0° Tilted Element, Bronze
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$548.11 Incl. GST
A80447
Raymarine CPT-S High CHIRP Thru-Hull Transducer
A80447
20° Tilted Element, Plastic
Stock Level:
Available
Stock Level:
Available
$407.57 Incl. GST
A80448
Raymarine CPT-S High CHIRP Thru-Hull Transducer
A80448
12° Tilted Element, Plastic
Stock Level:
Available
Stock Level:
Available
$407.57 Incl. GST

Style: Thru-Hull

Cable Length: 33' (10m)

Monitors: Depth/temperature

Beam width: FF=25°

Depth: FF: 900'(274m)

NOTE: Direct connect to CP100 & xx8 MFDs
