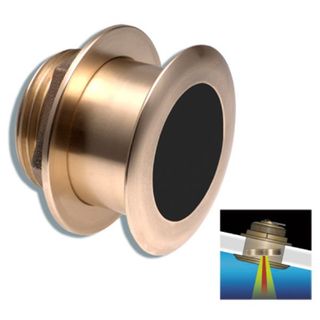

Raymarine B258 1kW Bronze Thru-Hull Transducer with Fairing Block
The B258 is an excellent, economical 1 kW, dual frequency transducer for anglers. Its unique four ceramic element construction produces an elliptical beam pattern that covers a wider area and produces excellent target resolution. The combination of 200 kHz and 50 kHz make it a great option for both shallow and deep-water use. The included high-performance fairing provides excellent performance at speeds up to 30 knots (34 MPH).
Features
- Depth and fast-response water-temperature sensor
- 1 kW power for performance to 2200’ (670m)
- Recommended boat size: above 30' (9m)

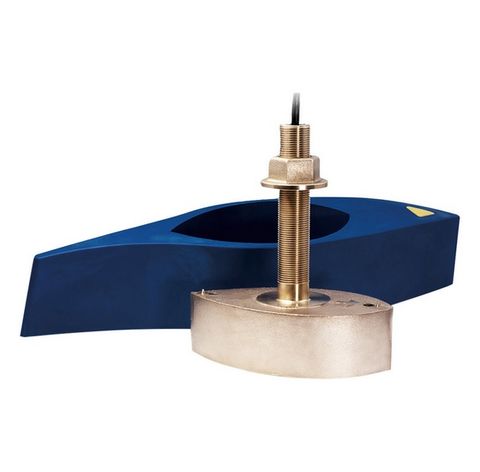

- Includes high-performance fairing block for better high speed performance
- Provides greater surface area resulting in better sensitivity
- Interfaces to any compatible 600W or 1KW Sounder with DSM/CP370 connector
Style: Thru-Hull
Cable Length: 30' (9m)
Boat Size: More than 9 m (30')
Monitors: Depth/temperature
Material: Bronze housing, Epoxy/Urethane acoustic window
Compatible Hull Material: Fibreglass & Wood
Transmit Power: 1kW
Frequency: 50/200kHz
Max Depth:
- 50kHz: 2,200
- 200kHz: 1000'
Beam width:
- 50kHz: 21°
- 200kHz: 5°
