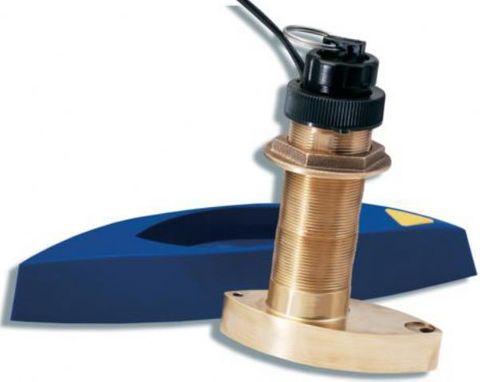

Raymarine B744VL 600W Bronze Long Stem Thru-hull Transducer
The Raymarine B744VL is a TRIDUCER® Multisensor featuring depth, speed and temperature in a single housing. The 50/200 kHz, dual-frequency, single ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744VL’s extended stem-length has the extra height needed for steep-deadrise vessels or thick, cored hulls.
Features
- Depth, speed, and temperature in one housing
- Compatible hull material: wood and fiberglass
- Hole diameter for installation: 2"
- Self-sealing removable paddle wheel insert.
- Long stem for extra thick and cored hulls.
- Cable Length: A26044 (14m), A66092 (10m)
Style: Thru-Hull
Hull Deadrise: Up to 24° with fairing
Cable Length: 33' (10m)
Monitors: Depth/speed/temperature
Material: Bronze housing, Urethane acoustic window
Compatible Hull Material: Fibreglass & Wood
Transmit Power: 600W
Frequency: 50/200kHz
Depth:
- 50kHz: 1,200'
- 200kHz: 700'
Beam width:
- 50kHz: 45°
- 200kHz: 12°
NOTE: Also available with a shorter stem version (B744V)
