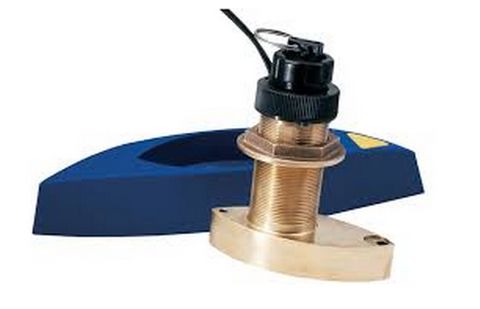

Raymarine B275 1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block

Raymarine B275 1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready B275 transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beam width provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready B275 transducer with wide beam coverage.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).
*All wide beam products come with a 2M pigtail off the transducer. Pair with a CHIRP Transducer Extension Cable (3, 5 or 10M) for a complete transducer installation.

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW power for great deep water performance to 3000’ (914m)
  • High wide beam width provides more coverage under the boat for detecting fish in the upper water column
  • Bronze transducer housing with high-performance fairing for improved high speed performance
  • Recommended boat size: above 25' (8m)
  • Hull Type: Fiberglass or wood
  • Interfaces to any compatible CHIRP Sounder with CP450c connector

Code Image Product Details Stock Price Quantity Enquire
A80322
Raymarine B275 1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block
A80322
1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block
Stock Level:
Low Stock
Stock Level:
Low Stock
$4,539.00 Incl. GST
Enquire

Style: Thru-Hull

Deadrise angle: Up to 20° with fairing

Cable Length: 6' (2m)

Boat Size: 8 m (25') and above

Monitors: Depth/temperature

Material: Bronze housing, Urethane acoustic window

Compatible Hull Material: Fiberglass or wood

Transmit Power: 1kW

Frequency/Beam width:

  • Low: 42-65 kHz (25°-16° beam)
  • High-Wide: 150-250 kHz (25° beam)

Depth:

  • Low: 3000'(914m)
  • High-Wide: 800'(243m)
