Raymarine P79 600W Adjustable In-Hull Depth Transducer

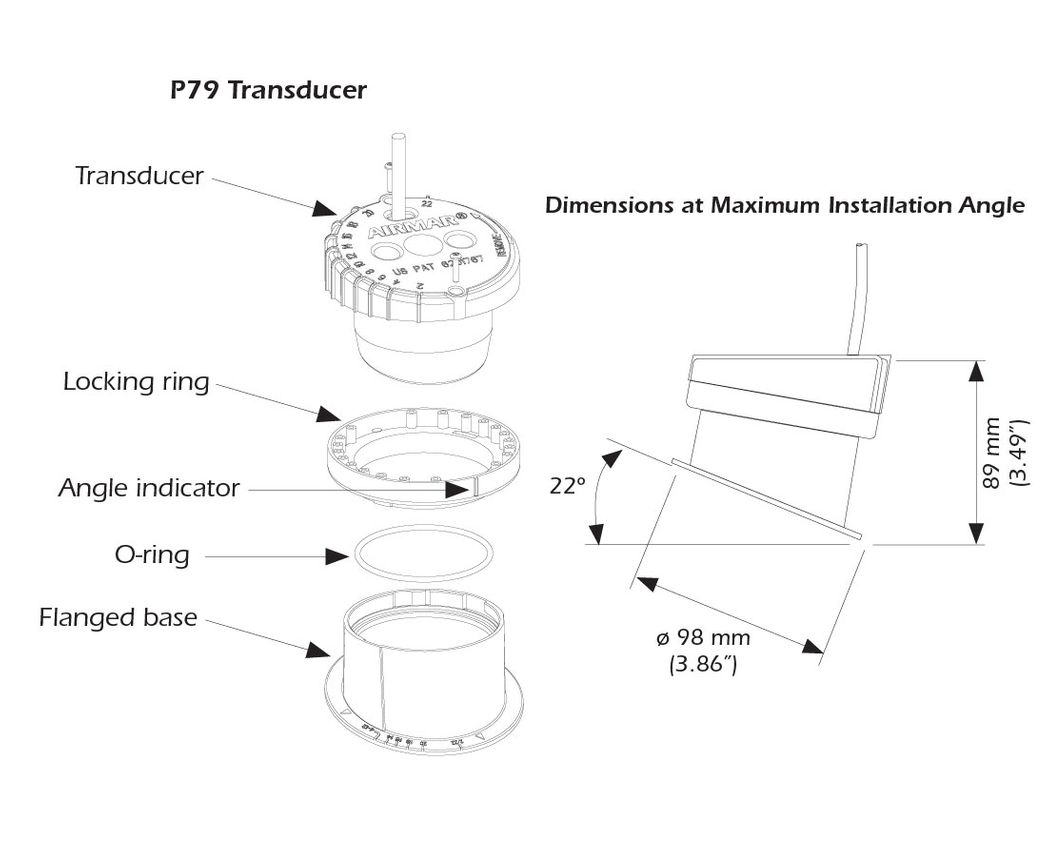

The P79 is a dual-frequency, depth only, in-hull transducer that easily adjusts to hull deadrise angles up to 22°.
The AIRMAR P79 includes a plastic housing which is aligned to the centreline and secured inside the hull then filled with nontoxic coolant. The transducer is inserted into the housing and adjusted for the proper deadrise offset, ensuring the beam is shooting straight down for maximum echo return. The coolant provides the best medium to transmit through the fiberglass and into the surrounding water. The major benefit of in-hull transducers is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25' with solid core, fiberglass hulls.
Style: In-Hull Adjustable
Deadrise angles: up to 22°
Cable Length: 25' (7.5m)
Monitors: Depth
Material: Plastic, Urethane acoustic window
Compatible Hull Materials: Solid fiberglass
Transmit Power: 600W
Frequency: 50/200kHz
Depth:
- 50kHz: 1,000'
- 200kHz: 600'
Beam width:
- 50kHz: 45°
- 200kHz: 12°
NOTE: E66066 adaptor cable required for connection to xx7 MFDs
