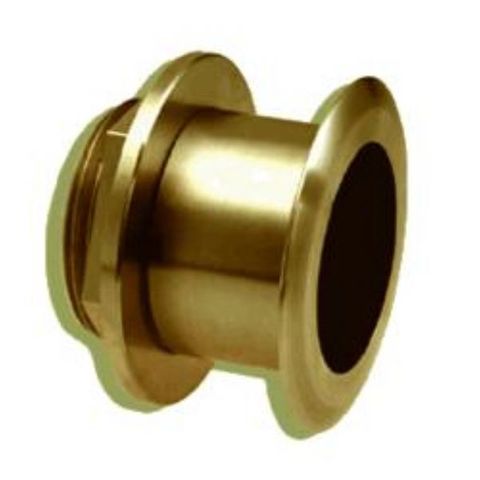

Raymarine B164 1kW Bronze Low Profile Thru-Hull Transducer

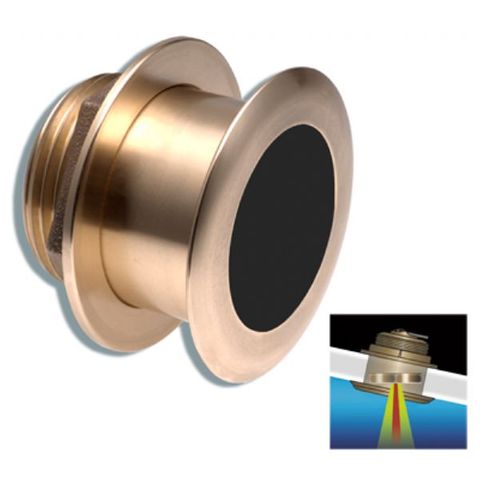

Step up to a 1 kW—Without a Fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered, vessels that cannot accommodate a high-performance fairing. The flush-mounted, bronze housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing providing the perfect vertical beam with maximum energy on what is directly below the boat.
Available in three Tilted Element™ models:
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Fixed 12° tilted version for 8° to 15° hull deadrise
- Fixed 0° tilted version for 0° to 7° hull deadrise
Features
- Depth and fast-response water-temperature sensor
- 1 kW power for performance to 1800' (548m)
- 50 kHz with a wide 22° beam
- 200 kHz with a 6° beam
- Engineered for centre-console and trailered boats

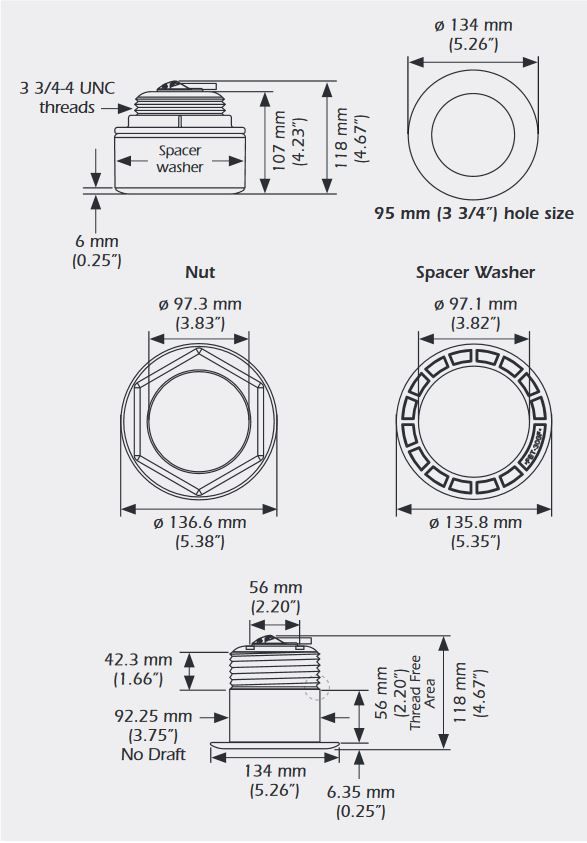

- Low-profile protrusion - less than 6.35 mm (0.25") outside your hull
- Bronze transducer housing for use on fiberglass and wood hulls
- Recommended boat size: up to 11 m (35')
- Interfaces to any compatible 600W or 1kW Sounder with DSM/CP370 connector
- Also available in stainless steel (SS164) for use on all hull materials
Style: Thru-Hull
Deadrise angle:
- 0° Tilt angle: 0° to 7°
- 12° Tilt angle: 8° to 15°
- 20° Tilt angle: 16° to 24°
Cable Length: 30' (9m)
Boat Size: Up to 11 m (35')
Monitors: Depth/temperature
Material: Bronze housing, Urethane acoustic window
Compatible Hull Material: Fibreglass & Wood
Transmit Power: 1kW
Frequency: 50/200kHz
Depth:
- 50kHz: 1,800'
- 200kHz: 800'
Beam width:
- 50kHz: 22°
- 200kHz: 6°
* For Stainless Steel models, an isolation ring is required.
See Owner's Guide for proper installation on Manual & Resources.
Related Products
-
CP370 Clearpulse Sonar ModuleE70297RRP:$1,864.10 Incl. GST
-

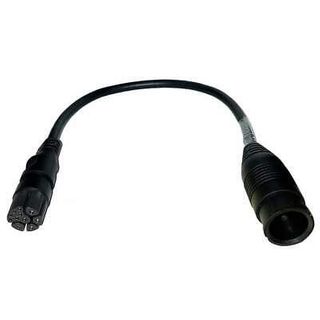

Axiom RV to 7-pin CP370 Transducer AdapterA80489RRP:$152.04 Incl. GST
-

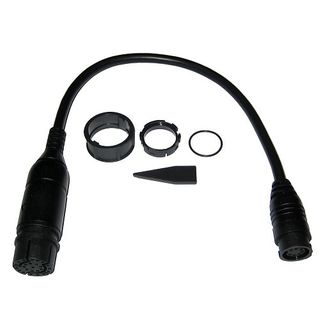

Axiom RV to 25-pin RV & 7-pin CP370 TransducersA80492RRP:$267.03 Incl. GST
-
