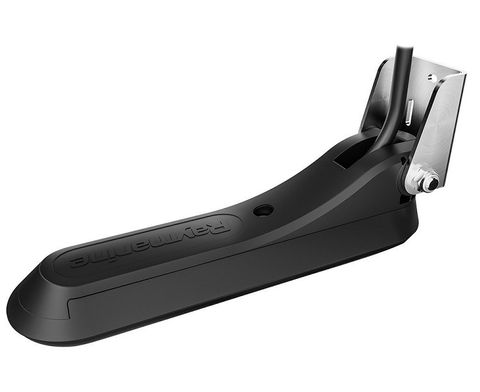

Raymarine RV-100 Realvision All-In-One Transom Mount Transducer
Raymarine’s RV-100 All-In-One transom mount transducer for Axiom and Axiom Pro multifunction displays lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, High frequency CHIRP fish targeting and RealVision 3D™ sonar inside.
Features
- Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
- Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
- Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
- Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, High frequency CHIRP in one transducer
- Depth and fast-response water-temperature sensor
Style: Transom Mount
Transom angle: 0-90°
Cable Length: 26' (8m)
Monitor: Depth and Temperature
Material: Plastic
Compatible hull material: Fiberglass, wood and metal
Max depth:
- 3D: 300'
- DownVision: 600'
- Port: 300'
- Starboard: 300'
- Conical: 900'
Frequency (KHz): RealVision and High CHIRP
Beam Width (L/H):
- 3D: 180°
- Down: 60°
- Conical: 25°

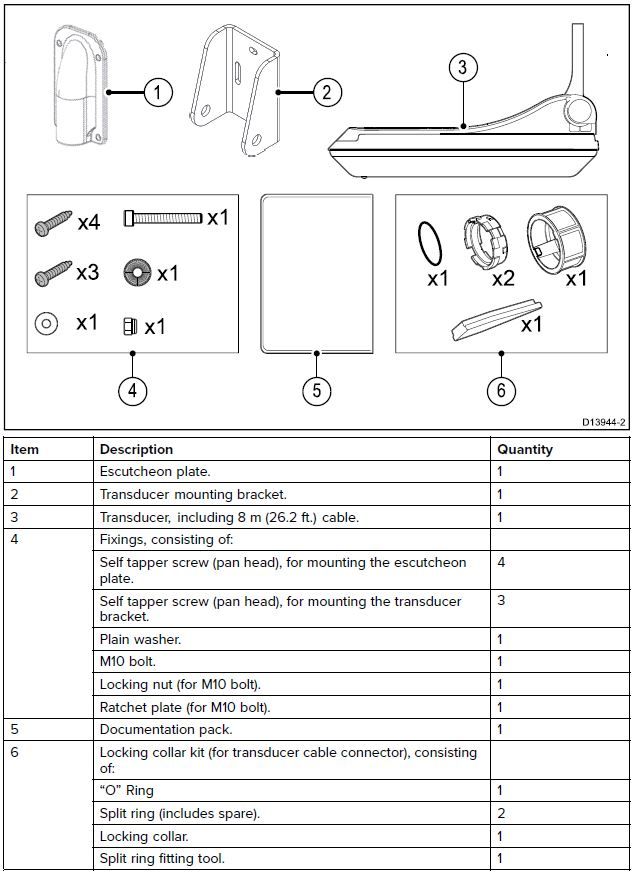

RV-100 3D Transom Transducer Installation Instructions
RV-100 3D Transom Transducer Mounting Template

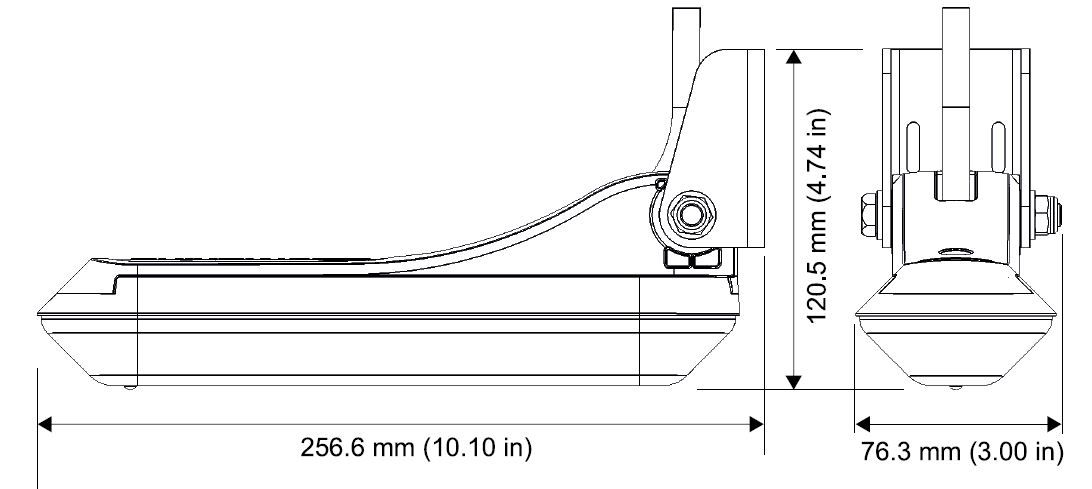

RV-100 3D Transom Transducer Overall Dimensions
RV-100 Hull & Step Bracket Installation Instructions
RV-100 Jack Plate Mount and Spacer Kit
RealVision 3D Transducer Cable Locking Collar Instructions
