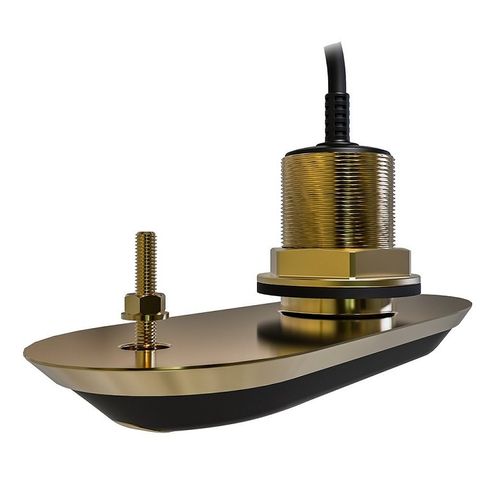

Raymarine RealVision 3D RV Bronze Thru-Hull Transducers
Designed for inboard or outboard boats, the RV-2xx Series Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-2xx system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail
Features
- Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
- Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
- Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
- Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, High frequency CHIRP
- One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
- Depth and fast-response water-temperature sensor
Style: Thru-Hull
Deadrise angle: 0-5°
Cable Length: 6.5' (2m)
Monitor: Depth and Temperature
Material: Bronze
Compatible hull material: Fiberglass, Wood
Max depth:
- 3D: 300'
- DownVision: 600'
- Port: 300'
- Starboard: 300'
- Conical: 900'
Frequency (KHz): RealVision and High CHIRP
Beam Width (L/H):
- 3D: 180°
- Down: 60°
- Conical: 25°
