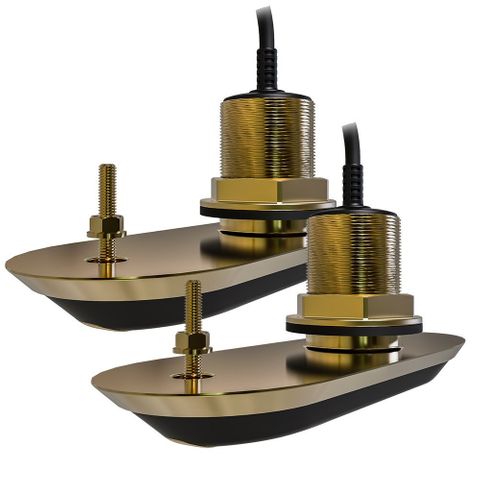

Raymarine RV-212 RealVision 3D Bronze Thru Hull Transducer Pair - 12 degree
Designed for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-212 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside.
Raymarine’s RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 6° to 18°. This eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-212 system works great on trailered boats too.
The RV-212 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet).
Features
- Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
- Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
- Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
- Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, High frequency CHIRP
- Depth and fast-response water-temperature sensor
Style: Thru-Hull
Deadrise angle: 5-15°
Cable Length: 33' (10m)
Monitor: Depth and Temperature
Material: Bronze
Compatible hull material: Fiberglass, Wood
Max depth:
- 3D: 300'
- DownVision: 600'
- Port: 300'
- Starboard: 300'
- Conical: 900'
Frequency (KHz): RealVision and High CHIRP
Beam Width (L/H):
- 3D: 180°
- Down: 60°
- Conical: 25°
