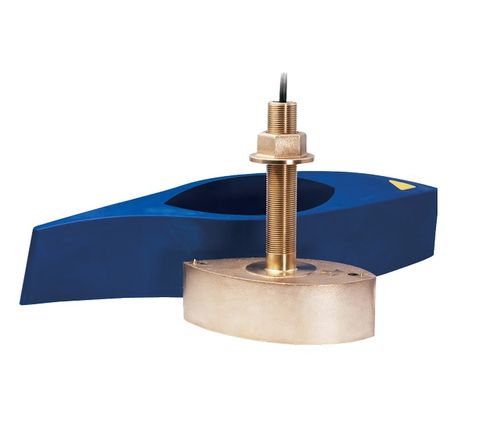

Raymarine B265 1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block

Raymarine B265 1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block

The B265 series is a solid choice when it comes to 1kW CHIRP Thru-Hull Transducers, with 8 internal ceramics and up to 103kHz of total CHIRP range the B265 offers specific frequencies excel at detecting certain species of fish.

This powerhouse Transducer delivers excellent resolution, bottom discrimination and bait and game fish separation at all depths.
The B265 is packed with a seven-element, low-frequency array that operates between 42 kHz and 65 kHz for excellent deep-water performance.

The medium frequency ceramic operates between 85 kHz to 135 kHz making this excellent for identifying targets suspended close to the bottom, on structure and within the water column.

The high-frequency ceramic operates between 130 kHz and 210 kHz with a narrow (10° to 6°), perfect for pick apart structure and pinpointing tight holding fish in structure.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

Features

  • Depth and fast-response water-temperature sensor
  • 1kW power for great deep-water performance to 3000’ (914m)
  • Bronze transducer housing with high-performance fairing for improved high-speed performance
  • Recommended boat size: above 25' (8m)
  • Hull Type: fiberglass or wood

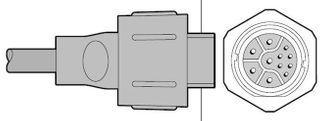

  • Interfaces to any compatible CHIRP Sounder with CP450c connector
  • Also available in transom-mount (TM265), pocket/keel mount (PM265), cavity mount (CM265), and in-hull (M265) models

Code Image Product Details Stock Price Quantity Enquire
A80010
Raymarine B265 1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block
A80010
Low/High
Stock Level:
Low Stock
Stock Level:
Low Stock
$3,511.00 Incl. GST
Enquire
A80011
Raymarine B265 1kW CHIRP Bronze Thru-Hull Transducer with Fairing Block
A80011
Low/Medium
Stock Level:
Low Stock
Stock Level:
Low Stock
$3,639.00 Incl. GST
Enquire

Style: Thru-Hull

Cable Length: 33' (10m)

Boat Size: 8 m (25') and above

Monitors: Depth/temperature

Material: Bronze housing, Urethane acoustic window

Compatible Hull Material: Fiberglass or wood

Transmit Power: 1kW

Frequency/Beam width:

  • Low: 42-65 kHz (25°-16° beam)
  • Medium: 85-135 kHz (16°-11° beam)
  • High: 130-210 kHz (10°-6° beam)

Depth:

  • Low: 3000'(914m)
  • Medium: 1500'(457m)
  • High: 1000'(304m)
