Raymarine AIS700 Class B AIS Transciever with Splitter

Raymarine AIS700 Class B AIS Transciever with Splitter

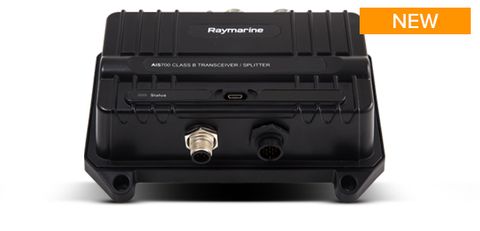

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

Raymarine AIS7000 Features:

  • Full transmit and receive AIS for enhanced situational awareness and safety

  • Latest SO-TDMA networking for longer range and faster performance

  • Built-in antenna splitter simplifies installation

  • NMEA2000, NMEA0183, PC (setup & diagnostics) and SeaTalkng compatible.

  • Software or hardware switchable Silent Mode for enhanced security when needed

Code Image Product Details Stock Price Quantity Enquire
E70476
Raymarine AIS700 Class B AIS Transciever with Splitter
E70476
AIS700 Class B+ AIS Transciever with Splitter
Stock Level:
Available
Stock Level:
Available
$2,796.80 Incl. GST
Enquire

Environmental Specifications:

  • Operating Temperature: -15°C to +55°C
  • Storage Temperature: -20°C to +75°C
  • Water Ingress: IPX6 and IPX7
  • Humidity: Up to 93% at 40°C

Power Specifications:

  • Power Supply: 12V and 24 nominal
  • Power Consumption: <3W
  • Peak Current: 3A
  • Load Equivalency Number: 1 LEN

RF Specifications:

  • DSC Receiver: Implemented by time sharing with one TDMA receiver
  • Receiver 1 Band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
  • Receiver 2 Band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
  • Transmitter Band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
  • Transmitter Specification: To meet IEC 62287-2 relevant sections
  • Receiver Specification: To meet IEC 62287-2 relevant sections
  • Transceiver Specification: To meet IEC 62287-2 relevant sections
  • GPS Receiver: u-blox MAX-M8W
  • GPS Receiver Channels: 72 channels
  • GPS Cold Start Aquisition Time: 26s nominal
  • Positional Source: GPS & GLONASS
  • AIS Performance: 5W SOTDMA

Antenna Splitter Specifications:

  • Operating Frequency Range: 156.0MHz to 162.025 MHz transmitting & receiving
  • Insertion Loss AIS RX Path: 0dB
  • Insertion Loss AIS TX Path: <1dB
  • Insertion Loss VHF RX Path: 0dB
  • Insertion Loss VHF TX Path: <1dB
  • Power Handling AIS Port: Maximum 5W input
  • Power Handling VHF Port: 25W input
  • Switching Time RX To VHF TX: 10uS max
  • Switching Time RX To AIS TX: 10uS max
  • Switching Time VHF TX To AIS TX: 10uS max
  • Switching Time Ant TX To RX: 10uS max
  • VHF Port Impendance: 50 Ohms
  • AIS Port Impendance: 50 Ohms
  • Antenna Port Impendance: 50 Ohms
  • VHF To AIS Port Isolation: >28dB (both directions)
  • Minimum VHF input Power For Switching: 400mW

External Connections:

  • VHF Antenna Connector Type: SO-239 co-axial
  • VHF Radio Connector Type: SO-239 co-axial
  • GNSS Antenna Connector: 50 ohm TNC co-axial
  • NMEA2000: DeviceNet male
  • USB: Micro-B
  • External Interface Isolation: NMEA0183 and NMEA2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification
  • NMEA0183 Interface 1 (MFD Connection): NMEA0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS.
  • NMEA0183 Interface 2 (NMEA0183 Instrument Connection): NMEA0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate.
  • USB Interface (PC Connection): Protocol NMEA0183 HS (IEC 61162-1) compliant, bi-directional USB por, 38.4 kBaud
