Raymarine R409LWM Ultra-Wide 2kW CHIRP Transducer with Fairing
Today’s top billfish tournament captains are calling the R409LWM their “go to” transducer for seeking out targets and pinpointing them in deep water. This ultra-wide transducer features a 40° beam width for an amazing amount of fish-finding coverage under the boat. Combining the low-frequency range (40 to 60 kHz) with a medium-frequency range (80 to 130 kHz), this tournament series transducer reveals more fish in the water column than ever before.
Captains are combining this transducer with a B175HW for a combined package covering low to high frequencies with both wide and narrow coverage.
Features
- Depth and fast-response water-temperature sensor
- 2kW power for great deep-water performance to 4000’ (1219m)

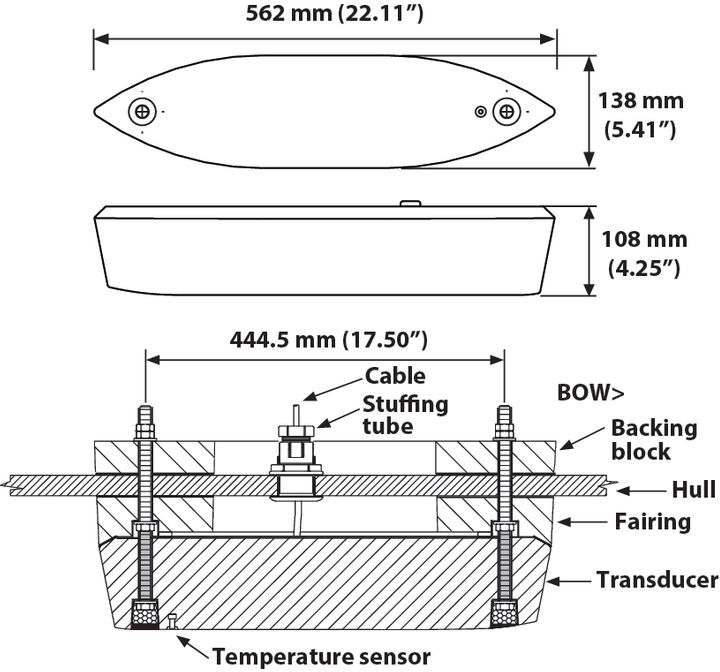

- Urethane transducer housing with high-performance fairing for improved high-speed performance
- Recommended boat size: above 40' (12m)
- Hull Type: Fiberglass, wood or metal
- Compatible with CP470/570
Style: Thru-Hull
Deadrise angle: 0° to 22°
Cable Length: 33' (10m)
Boat size: 12 m (40’) and above
Monitors: Depth/temperature
Material: Urethane housing
Compatible Hull Materials: Fiberglass, wood or metal
Transmit Power: 2kW
Frequency/Beam width:
- Low: 40-60 kHz (40° beam for ultra-wide coverage)
- Medium: 80-130 kHz (13°-8° beam)
Depth:
- Low: 4000'(1219m)
- Medium: 3000'(914m)
