Raymarine SS175 CHIRP Transducer
Raymarine SS175 1kW Depth Through Hull CHIRP Transducer, 20 Degree Tilt, available in Low, Medium or High beamwidth.

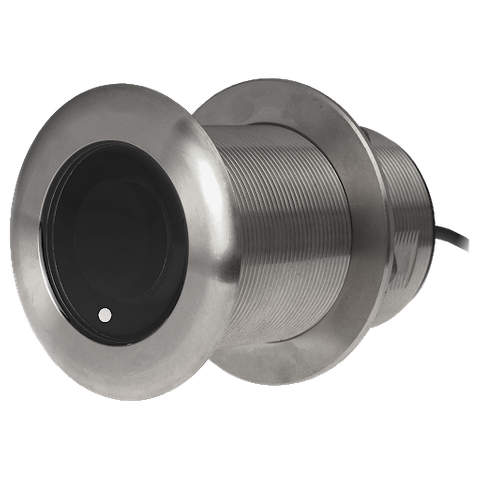

The SS175 is a low profile stainless steel through hull single element CHIRP transducer. It has a 20 degree tilted element suitable for hulls with 16-24 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts.
NOTE:
Use a single SS175 with the necessary Single Operation Cable (A80328) or pair two SS175s together with the Paired CHIRP Transducer Y-Cable (A102146). Use a single B175 with the necessary Single Operation Cable (A80328) or pair two B175s together with the Paired CHIRP Transducer Y-Cable (A102146).
Style: Thru-Hull
Dreadrise angle: up to 24°
Cable Length: 33' (10m)
Boat Size: Up to 11 m (36')
Monitors: Depth/temperature
Material: Stainless steel housing, Urethane acoustic window
Compatible Hull Material: Fiberglass, wood and metal
Transmit Power: 1kW
Frequency/Beam width:
- Low: 40-60 kHz (32°-21° beam)
- Medium: 85-135 kHz (16°-11° beam)
- High: 130-210 kHz (10°-6° beam)
- High-Wide: 150-250 kHz (25° constant beam)
Max Depth:
- Low: 2500'(762m)
- Medium: 1500'(457m)
- High: 1000'(304m)
- High-Wide: 500'(152m)
* For Stainless Steel models, an isolation ring is required.
See Owner's Guide for proper installation on Manual & Resources.
