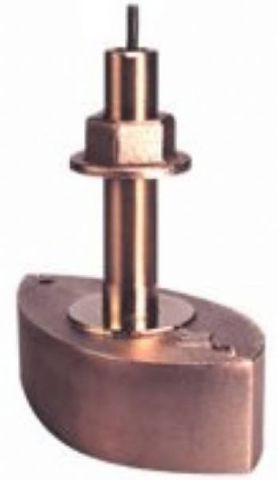

Raymarine B260 1kW Bronze Thru-Hull Transducer with Fairing Block
The performance of Airmar’s "1kW 260 family" of Transducers has made them legendary. The combination of power and sensitivity has made this the high-performance Transducer of choice for use with conventional fishfinders. Operating at 50 kHz and 200 kHz, the narrow 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz provides excellent deep-water detection and the wide 19° beam provides broad coverage under the boat.
The Thru-Hull B260 model is offered in bronze and available in stainless steel (SS260) for installations on metal hulls. Installed with the included custom-fitting high-performance fairing, the 260 can provide excellent performance at speeds up to 30 knots (34 MPH).
Features:
- Depth and fast-response water-temperature sensor
- 1 kW power for performance to 2500’ (762m)
- Recommended boat size: above 30' (9m)
- Includes high-performance fairing block for better high-speed performance
- Interfaces to any compatible 600W or 1KW Sounder with DSM/CP370 connector
Style: Thru-Hull
Cable Length: 30' (9m)
Boat Size: More than 9 m (30')
Monitors: Depth/temperature
Material: Bronze housing, Urethane acoustic window
Compatible Hull Material: Fibreglass & Wood
Transmit Power: 1kW
Frequency: 50/200kHz
Depth:
- 50kHz: 2,500'
- 200kHz: 1000'
Beam Width:
- 50kHz: 19°
- 200kHz: 6°
Related Products
-
CP370 Clearpulse Sonar ModuleE70297RRP:$1,864.10 Incl. GST
-
50/200 kHz , Depth/TemperatureE66084RRP:$1,860.00 Incl. GST
-
20° Tilt AngleA102113RRP:$2,531.00 Incl. GST
-

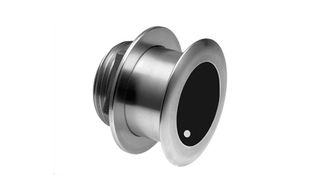

SS164 Stainless Steel TransducerA66099RRP:$2,951.00 Incl. GST
