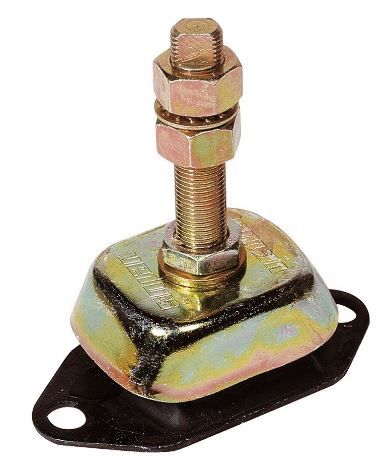

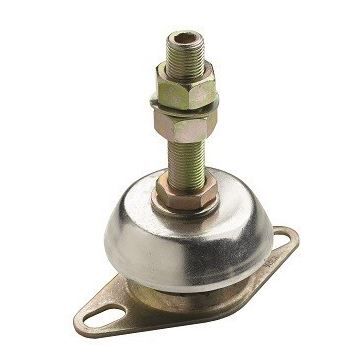

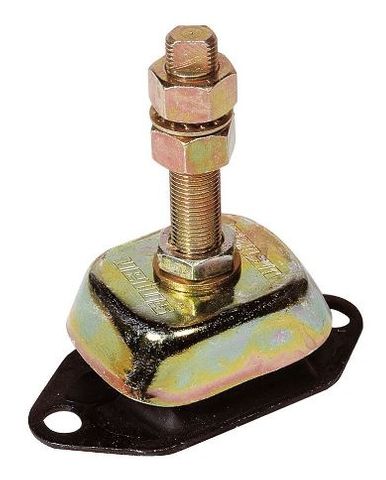

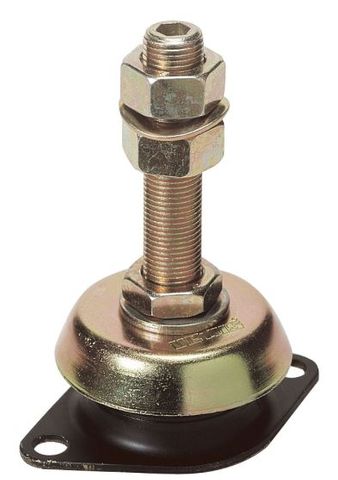

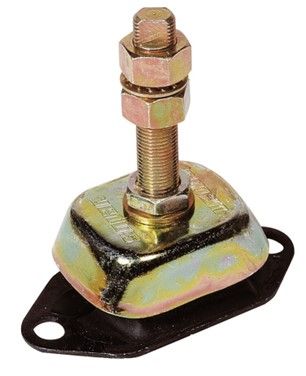

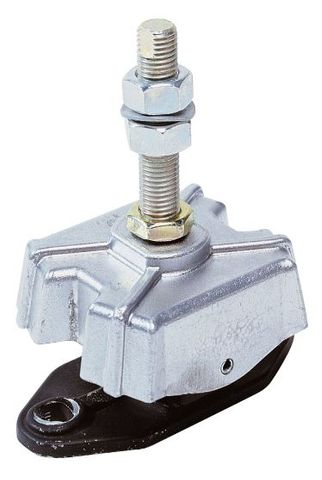

Vetus Flexible Engine Mount 35-100KG

Code Image Product Details Stock Price Quantity Enquire
KSTEUN100V
Vetus Flexible Engine Mount 35-100KG
KSTEUN100V
100KG Max Load
Stock Level:
Available
Stock Level:
Available
$132.60 Incl. GST
KSTEUN25V
Vetus Flexible Engine Mount 35-100KG
KSTEUN25V
35KG Max Load
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$132.60 Incl. GST
KSTEUN35V
Vetus Flexible Engine Mount 35-100KG
KSTEUN35V
37KG Max Load
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$132.60 Incl. GST
KSTEUN40A
Vetus Flexible Engine Mount 35-100KG
KSTEUN40A
40KG Max Load
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$132.60 Incl. GST
KSTEUN50V
Vetus Flexible Engine Mount 35-100KG
KSTEUN50V
50KG Max Load
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$132.60 Incl. GST
KSTEUN75V
Vetus Flexible Engine Mount 35-100KG
KSTEUN75V
75KG Max Load
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$132.60 Incl. GST
KSTEUN80V
Vetus Flexible Engine Mount 35-100KG
KSTEUN80V
80KG Max Load
Stock Level:
Low Stock
Stock Level:
Low Stock
$132.60 Incl. GST



  KSTEUN25V KSTEUN35V KSTEUN40A KSTEUN50V KSTEUN75V KSTEUN100V
Stiffness Ratio - Vertical 1 1 1 1 1 1
Stiffness Ratio - Athwartships 1.4 1.4 1 0.75 0.75 0.75
Stiffness Ratio - Fore and Aft 1.4 1.4 2.4 2.5 2.5 2.5
Min. Load (kg) - Static 15 15 25 25 38 50
Min. Compression (mm) - Static 1.3 1.3 5 2 2 2
Max. Load (kg) - Static + Dynamic 35 37 40 50 75 100
Max. Compression (mm) - Static + Dynamic 3 No 8 4 4 4
Hardness in o Shore 45 45 50 45 55 65

           KSTEUN25V                                        KSTEUN35V

           KSTEUN40A                                                             KSTEUN50V

           KSTEUN75V                                           KSTEUN100V
