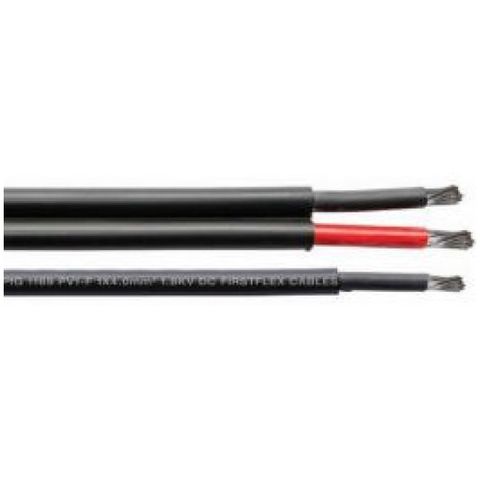

Twin Core Solar Cable 4mm
Designed to withstand the harsh environments of solar panel installations. Suitable for cabling between interconnected solar modules or DC/AC inverter. Sold per meter or 100m roll. Black outer sheath.
Voltage rating:
0.6/1kV AC Voltage / 0.9/1.8kV DC Voltage
Construction:
Conductor: Annealed Tinned Copper Strands, Class 5 & 6
Insulation: XLR 120°C Compound (PV1-F)
Outer Sheath: XLR Compound
Colour: Red and Black Cores
Standards: AS/NZS 5033:2014, IEC 60332-1, IEC 60228, IEC 60754-1, IEC 61034
No. of Cores x Size (mm²): | 2 x 4.0 |
Approx. Stranding (No. of wires x mm): | 52/0.30 |
Approx. Overall Diameter (mm): | 4.6 x 9.40 |
Current carrying capacity at 60°C ambient temperature (free air): | 55 |
Approx. Weight (Kg/Km): | 120 |
