Jabsco Reversible Oil Change Pump

Jabsco Reversible Oil Change Pump

HTML Editor - Full Version

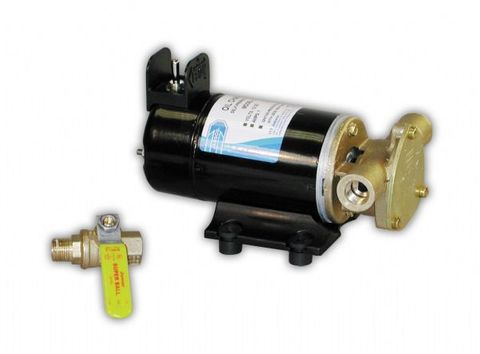

Jabsco Reversible Bronze Oil Change Pump is designed to be installed near a vessel's engine and permanently plumbed to the engine's oil pan. The pump can be used to remove old oil from the engine, then with the integral reversing switch the flow direction can be changed to pump a measured amount of new oil back into the engine. The connection to the engine should be controlled by the 3/8" ball valve(provided) to guard against accidental oil discharge.

Self-priming from dry up to 1.2m (4ft). Small bilge debris present no problem to these bronze bodied, flexible impeller pumps. Simple design means fewer wearing parts.

Flow rate: 6.3 gallons/min (24 Litres/min).

Code Image Product Details Stock Price Quantity Enquire
17830-0012
Jabsco Reversible Oil Change Pump
17830-0012
12VDC
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$1,137.78 Incl. GST
Enquire
17830-0024
Jabsco Reversible Oil Change Pump
17830-0024
24VDC
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$1,565.53 Incl. GST
Enquire

Body: Bronze

Impeller: Nitrile

Seal: Buna Lip Type

Motor: Reversible Permanent Magnet with Integral Reversing Switch

Valve: 3/8" NPT Full Flow Ball Type

Height: 4-7/16" (113mm) Including Height of Switch Guard

Length: 7-7/8" (200mm)

Width: 3-3/4" (95mm)

Weight: 9 lbs. (4.1 kg)
