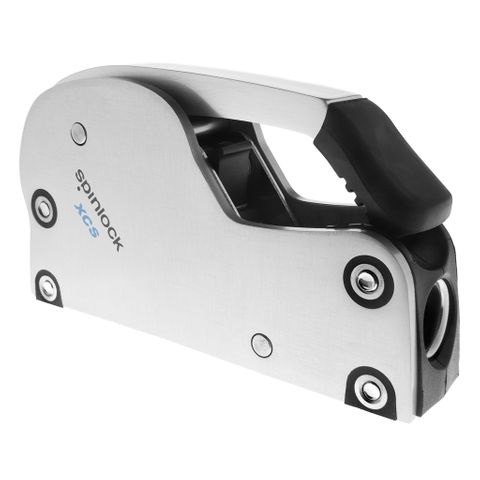

Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
The XCS clutch offers a range of quality finishes to match your deck or rig. Aluminium sides for sustained higher load operation. Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics.

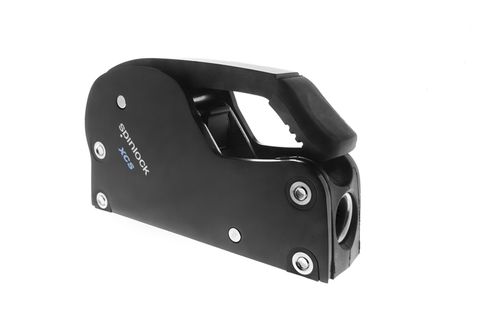

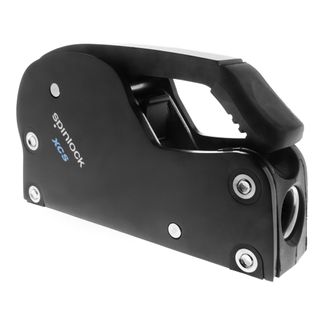

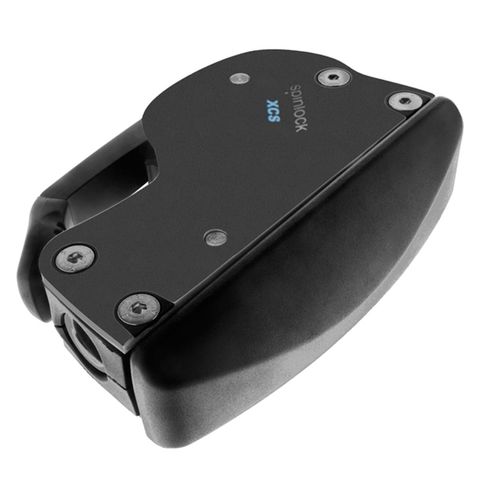

Mid to higher load rope holding. Reliable all round performance. Available in white coated, black anodised or silver polished alloy.
Available for a variety of line diameters. Ceramic Coated CAM and Base available for consistent holding & performance on modern lines. Extruded alloy handle with soft end grip. Secure handle locking in open and closed position. Easy access to fasteners. Handle labels supplied.
XCS0610
Lines: 6mm - 10mm (1/4" - 3/8")

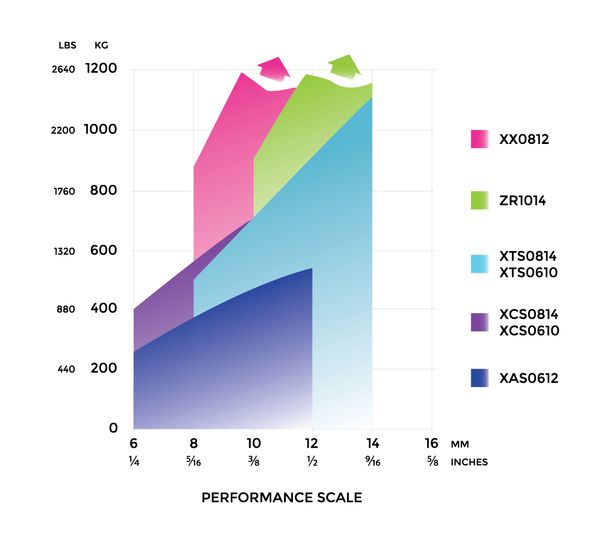

Loads up to 700kg (1543lbs)
XCS0610 - Small diameter, high load
For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line.

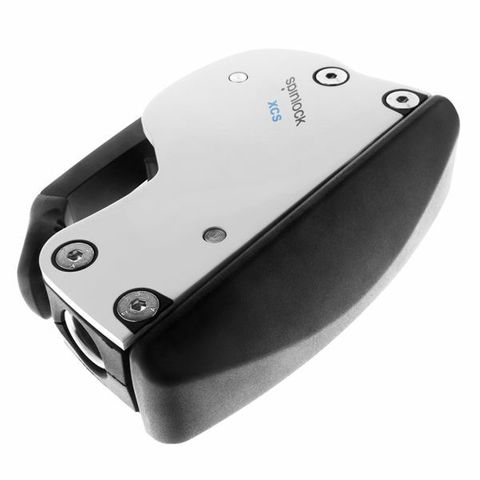

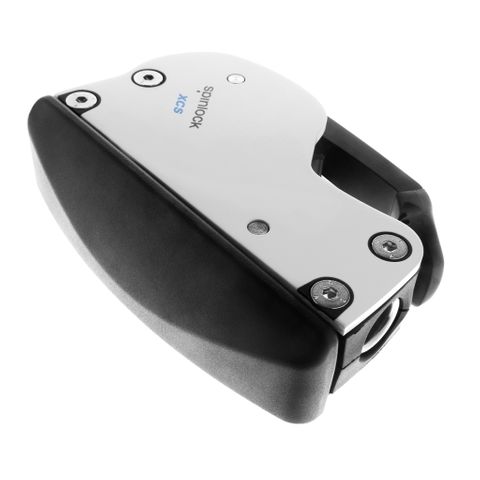

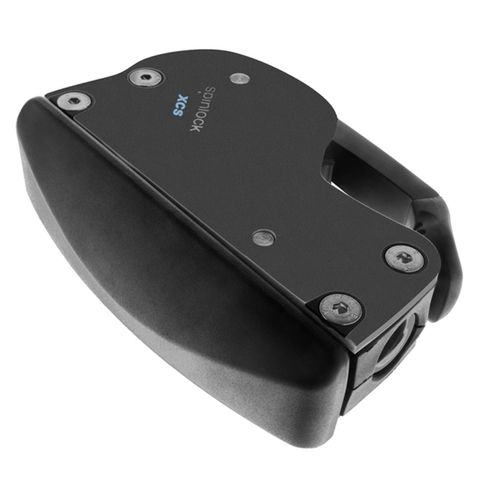

Side Mounting
Side mounting is usually the neatest solution for spars, side decks and coamings
Lock Open Cam XCS/L
Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed
Weights

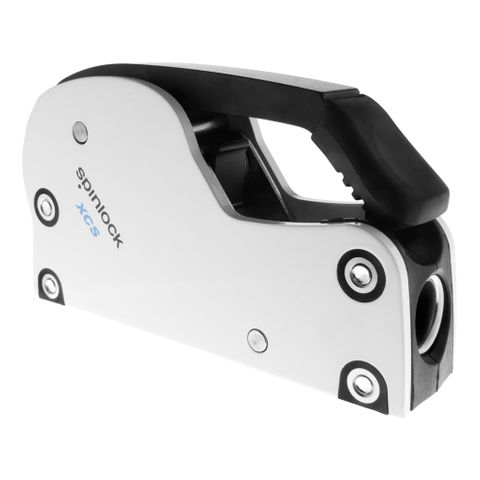

- XCS Single - 630g (22.1oz)

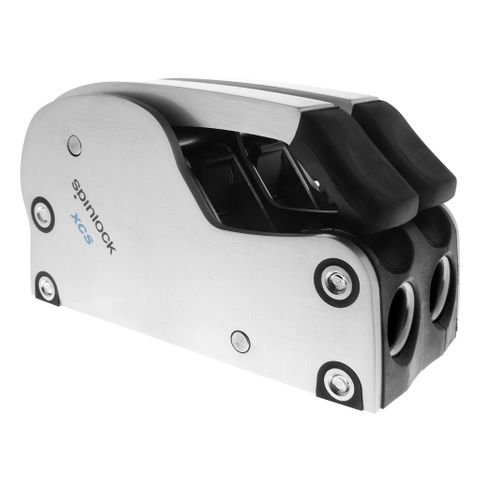

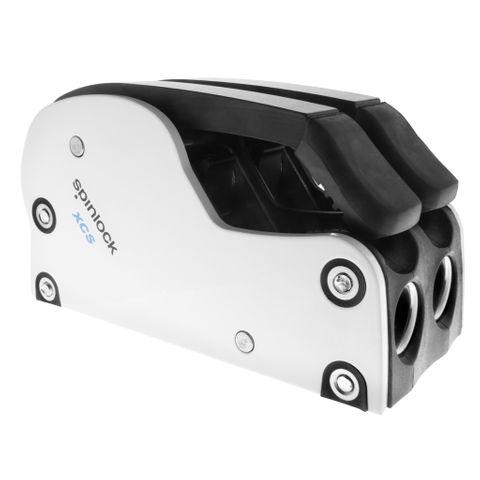

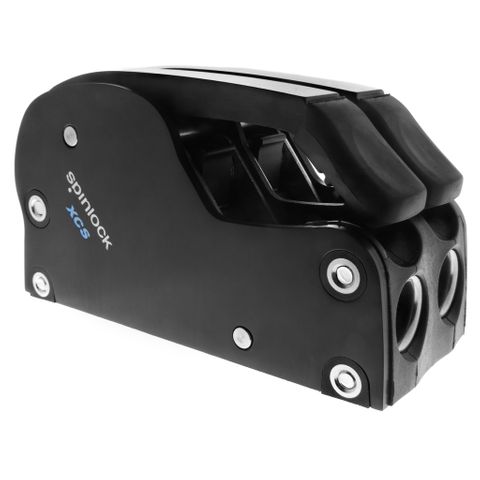

- XCS Double - 1130g (39.6oz)

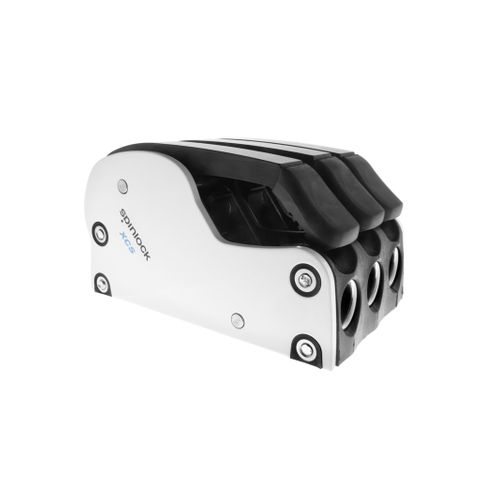

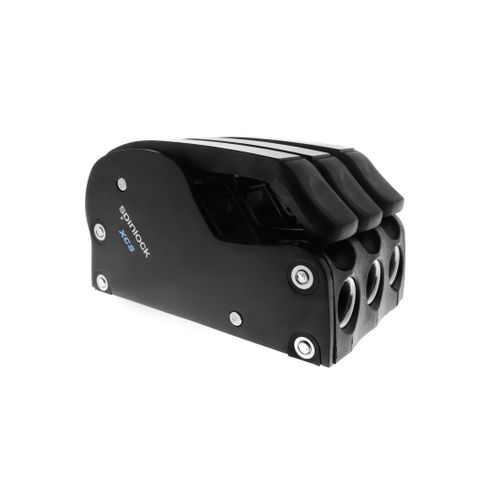

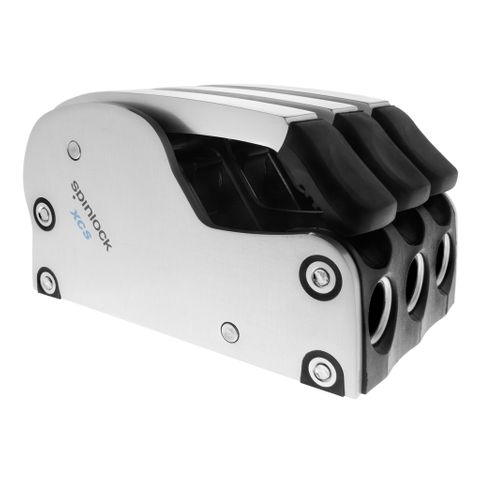

- XCS Triple - 1610g (56.4oz)
Fasteners
- XCS Single - 2 x M8 (5/16") CSK Head (not supplied)
- XCS Double - 4 x M8 (5/16") CSK Head (not supplied)
- XCS Triple - 6 x M8 (5/16") CSK Head (not supplied)
Related Products
-
Line Ø 6-10mm, Single Clutch, Black, Loads up to 1000kgXCS0610-1BRRP:$535.00 Incl. GST
-
Line Ø 6-10mm, Single Clutch, Silver, Loads up to 1000kgXCS0610-1SRRP:$535.00 Incl. GST
-

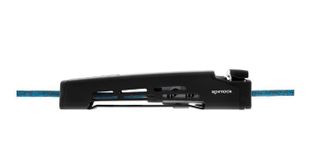

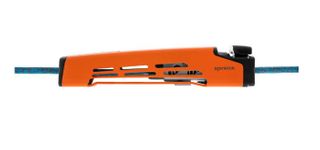

Line Ø 8mm, Amber, MWL up to 800kgXTX08-ARRP:$443.00 Incl. GST
-
