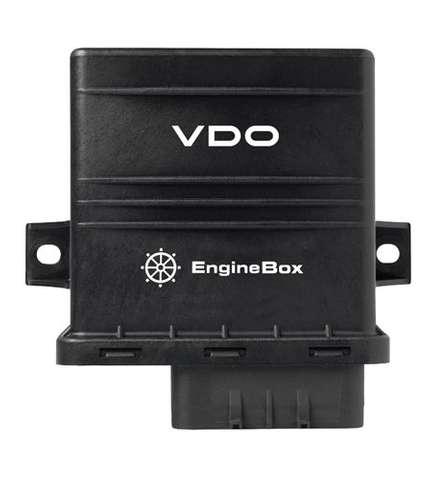

Veratron Engine Box

Veratron Engine Box

HTML Editor - Full Version

The Veratron EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required.

The EngineBox has a NMEA2000 and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for: RPM data, 0 – 400 Ω sensors and 4 – 20 mA sensors.

Code Image Product Details Stock Price Quantity Enquire
A2C1824820001
Veratron Engine Box
A2C1824820001
Single Engine
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$907.12 Incl. GST
Enquire

General Features:

Material

PA6-GF30
Protection grade

IP X9k-f IEC 60945 protected
Flammability

UL-94 V0
Connectors

Micro-Pack MW100
NMEA 2000 Micro-C M12
Status LED

Off: not powered

Green fixed: powered without data transmission

Green flashing: data transmission underway
Available variations (*)

EB1: single engine

EB2: dual engine
Input data

NMEA 2000, SAE J1939, frequency 0–4 kHz, resistive 0–400Ω. capacitive 4–20 mA, 0–5 V
Output data

NMEA 2000
Start-up time

 < 1 s

Note: Engine Box detects the presence of the single or double engine cable.



Environmental Specifications

Working temperature

From -25 to +70 °C
Storage temperature

From -40 to +85 °


Electrical Specifications

Rated voltage

12 / 24 V dc
Voltage tolerance

9–32 V dc
Working current

150 mA @ 12V
Reverse polarity protection

Yes
Short circuit protection

Yes, 1 minute
