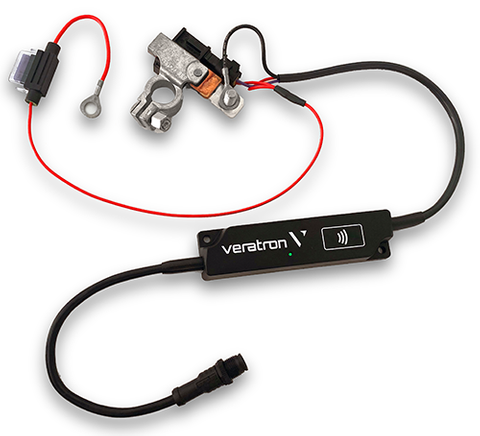

Veratron LinkUp Intelligent Battery Sensor
The veratron LinkUp gateways bring your analogue sensors to the NMEA 2000 network era. All your boat’s data is now digitally available to be displayed on any NMEA 2000 enabled device.

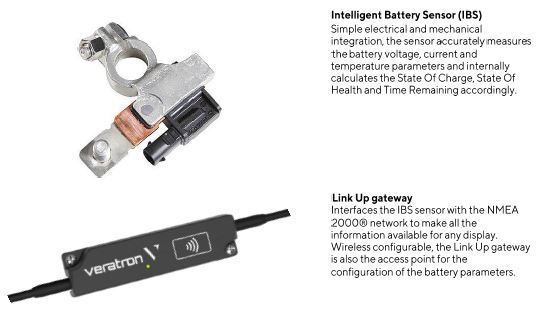

The 12V IBS variant allows the connection of the 12V Intelligent Battery Sensor to keep you batteries always under control. In addition to Voltage, Current and Temperature, the IBS system reliably deliver State of Charge, State of Health and Autonomy information to your NMEA 2000 system. All NMEA 2000 certified! The standard Micro-C M12 connector perfectly interfaces with the NMEA 2000 network without the need of additional adapters. No dedicated power supply is required, the LinkUp gateway gets its power directly from the NMEA 2000 network. The embedded LED notifies you the status of the device and its configuration at any time, reducing commissioning and troubleshooting time. The configuration of the LinkUp devices has never been so easy. Launch the App and define your settings through the user-friendly interface, then simply hold your mobile device in proximity of the LinkUp to transfer the configuration. Thanks to the embedded passive antenna the configuration can be done powerless!
Operating voltage |
6–16.5 V |
Operating current (permanent) |
+155 A |
Maximum current |
+1500 A (500ms) |
Protection class |
IP 6K7 |
Power consumption |
<15mA (normal mode) <120µA (sleep mode) |
Max battery capacity |
249 Ah |
Supported battery types |
Gel, AGM, Flooded (Lead) |
Operating temperature |
-40°C to 115°C |
LinkUp plug |
Hirschmann |
Grounding bolt |
M8 |
