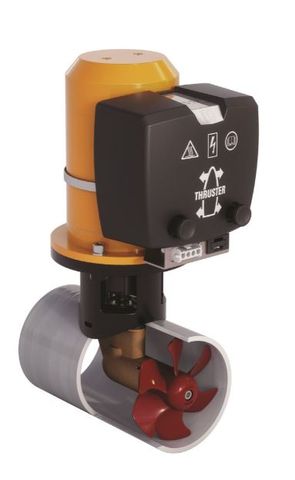

Vetus Stern Thruster Kit 25KGF 110mm tunnel
The new BOW2512E features a new motor, making them more energy efficient than the older models.
To accommodate the new flexible coupling, the flange height has increased by 30 mm. Apertures in the flange enable easy checking of the coupling. Last but not least, the flange face will change from triangular to round, allowing the motor to be rotated in steps of 90° as opposed to the current steps of 120°, and creating uniformity in the entire DC bow thruster range.
Flexible coupling between tailpiece and motor eliminates vibrations. Single propeller creates less flow disturbance in the tunnel. Vetus unique propeller blade design minimises cavitation noise. Strong synthetic propeller is resistant to corrosion and reduces weight. Spiral gears minimise transmission noise.
Meets EMC requirements.
Proportional: No
Thrust: 25 N/KGF
Power: 1.5KW
Internal Tunnel Diameter: 110MM
Weight: 10KG
Voltage: 12V
Current Consumption: 200A
Continuous Operating Time: 4 MIN
Ignition Protected: No
Retractable: No
Extended Runtime: No
