CZone Keypads
Digital Switching, Let CZone do the thinking. Control your boat or RV easily from anywhere.
The CZone digital control and monitoring network simplifies installation of electrical systems through the replacement of complicated wiring. CZone replaces switch and fuse panels with state-of-the-art, robust interfaces and light NMEA 2000 network cables. It provides a sophisticated solution via automation of the control and monitoring issues required by today’s complex on-board and in-vehicle systems.
CZone allows the user to control multiple circuits with “One Touch”, dramatically simplifying operation. With control potentially available at any point in the NMEA network, fingertip control is available anywhere around the boat or vehicle, through the dedicated CZone screens, iPad, remote keyfob or through the navigation MFDs of integration partners.
Ease of operation assured. With one press of the key users can turn on a group of circuits without having to search for them and turn on the individual circuits that they need for the operation of their vessel or vehicle. When leaving, simply press ‘systems off’ to turn off all non-essential circuits. Entertainment mode allows preset activation of lounge lights, music, etc. All functions can be controlled remotely.
The CZone system, designed for 9V to 32V systems, features built-in timers, dimmers (including support for halogen lighting), alarms, voltage reducers and load shedding. With safety in mind, the CZone™ system features a manual bypass.
|
NMEA 2000 CONNECTIVITY |
1 x CAN Micro-C port |
|
INTERFACE |
keypad |
|
BACKLIGHT COLOUR |
RGB LED with dimming |
|
SUPPLY VOLTAGE |
9-16 V via CAN |
|
MOUNTING |
front and rear mount |
|
PROTECTION DEGREE |
IPx7 |
|
DIMENSIONS (H x W) |
6-Way Keypad : 107 x 77 mm 12-Way Keypad : 182 x 77 mm |
|
WEIGHT |
0.115 kg |
|
WARRANTY PERION |
2 years |
|
COMPLIANCE |
CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected |
|
POWER CONSUMPTION |
max. 56 mA / standby 1.8 mA |
|
TEMPERATURE RANGE (ambient temp.) |
-15 °C to 55 °C (5 °F to 131 °F) |
|
TEMPERATURE RANGE (storage/non operating) |
-40 °C to 85 °C (-40 °F to 185 °F) |

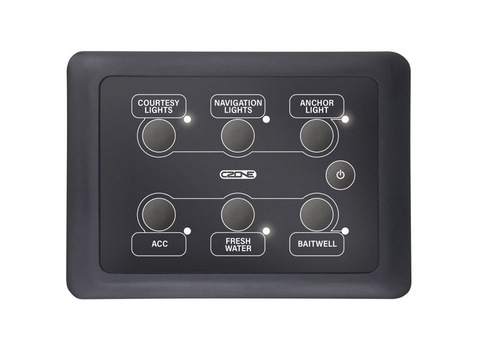

6-Way Waterproof Keypad

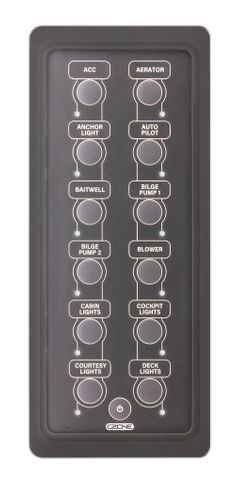

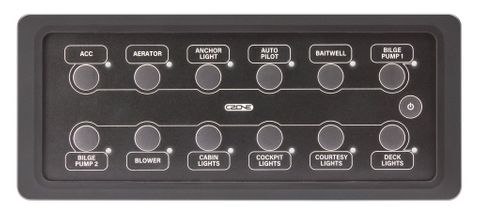

12-Way Waterproof Keypad
