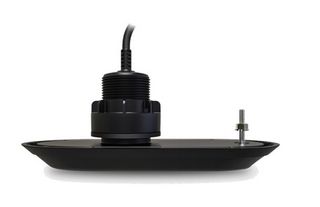

Raymarine RV-312 RealVision 3D Plastic Thru Hull Transducer Pair - 12 degree

Designed for inboard or outboard boats, the RV-312 Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-312 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside.

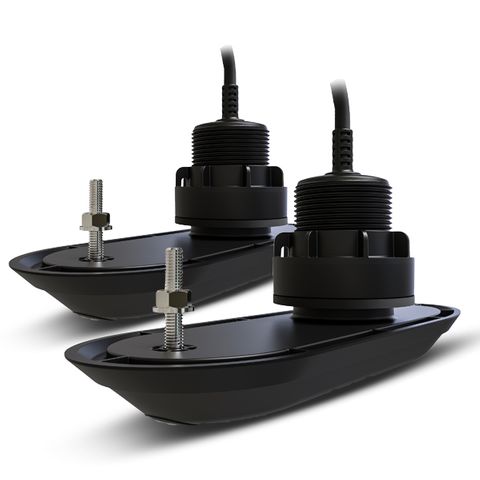

Raymarine’s RV-312 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 6° to 18°. This eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-312 system works great on trailered boats too.

The RV-312 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminium hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.)

Features

Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, High frequency CHIRP
Depth and fast-response water-temperature sensor
