Alpha 7 Performance Display
The Alpha series displays are high-visibility touchscreen displays with fully customisable marine instrument data and graphic displays to help you make smarter sailing decisions. Designed for helm or mast mounting, the Alpha Series is controlled and customised via touchscreen or take control of Alpha displays remotely from a networked Raymarine Axiom chartplotter. The Alpha Performance Display provides a new level of versatility for marine instrument displays.
PHYSICAL
Width: 120.1 mm (4.72 in)
Height: 188.4 mm (7.42 in)
Depth: 32 mm (1.26 in)
Port separation distance: 5.71 mm (0.22 in)
Weight: 0.72 kg (1.59 lb)
POWER
Nominal supply voltage: 12 V / 24 V dc
Operating voltage range: 10.8 V to 32 V dc
Current: 0.84 A (nominal) @ 12V dc / 0.43 A (nominal) @ 24 Vdc
Power consumption: 10 W (maximum)
Inline fuse rating: 8 A
Thermal breaker rating: 8A
NETWORK
Axiom: The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
Data connections: 1 x Daisy-chain connector, 1 x Power / RayNet Ethernet connector.
ENVIRONMENTAL
Operating temperature range: -25°C to +55°C (-13°F to +131°F)
Storage temperature range: -30°C to +70°C (-22°F to +158°F)
Relative humidity: 93% Max
Waterproof rating: IPX6 and IPX7
DISPLAY
Display screen: 7" IPS TFT LCD
Brightness / Luminance: 1500 nits / 1500 cd/m2
Viewing angles: Portrait - 85 + / 85 + | Landscape - 85 + / 85 +
Resolution: 1024 (H) x 600 (V)
Pixels Per Inch: 170 PPI
Colour: 24-bit colour (16.7 million colours)
Refresh rate: 60 Hz
CONFORMANCE
New Zealand: EN 60945:2002
Product Markings: UKCA, CE, Australian Tick, WEEE Directive, Industry Canada.

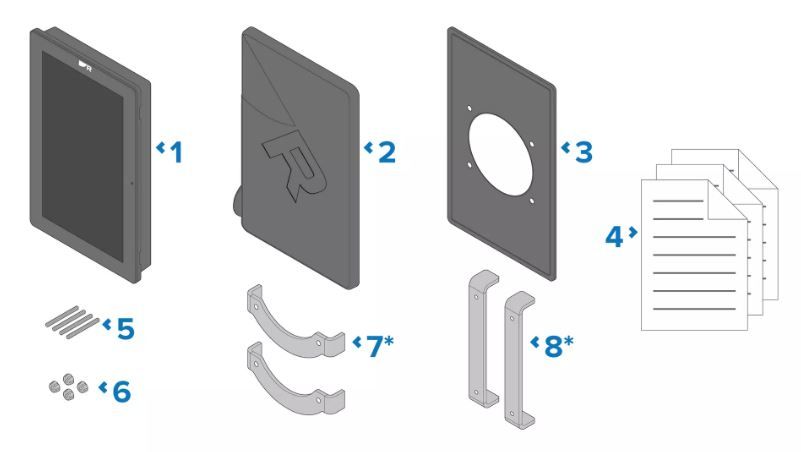

The following parts are supplied with Alpha 7" displays:
1. Alpha Series performance display
2. Suncover
3. Waterproof gasket
4. Documentation pack
5. 4 x Threaded studs, M4 x 40mm
6. 4 x Thumb nuts
7. 2 x mounting brackets
Related Products
-

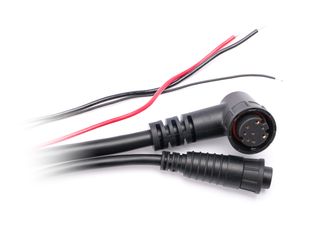

3M Power Cable - Alpha Performance DisplayA80709RRP:$158.00 Incl. GST
-

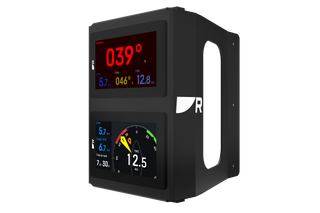

Alpha 7 Landscape Dual Mast BracketA80712RRP:$492.00 Incl. GST
-
