RNS-8 Network Switch

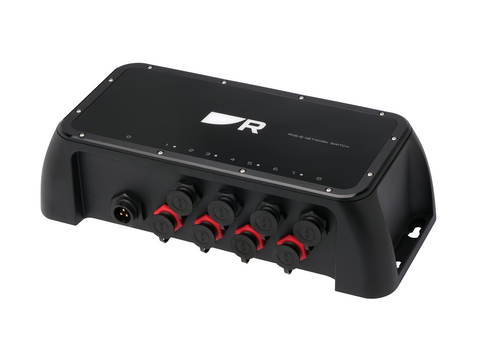

The Raymarine RNS-8 Network Switch has been designed for more extensive networks, to allow the Axiom displays to be integrated with radars, sonar modules and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300, a marine IP camera and RMK-10 remote keypads.
To ensure there is a seamless connection between the Axiom and RNS-8 network switch, we highly recommend you upgrade any connected Axiom chartplotter to the latest LightHouse 4.5 operating system.
PHYSICAL
Length - 287.63 mm (11.32 in)
Height - 125.5 mm (4.94 in)
Depth - 78 mm (3.07 in)
Post Separation distance - 17.38 mm (0.68 in)
Weight - 960.5 g (2.12 lb)
POWER
Nominal supply voltage - 12 V or 24 V dc
Operating voltage range - 9 V to 31.2 V dc
PoE operating voltage range - 10.8 V to 31.2 V dc
Power consumption - 160 W (Maximum) @ 12 V dc & 150 W (Maximum) @ 24 V dc
Current - 13.3 A (Maximum) @ 12 V dc & 6.25 A (Maximum) @ 24 V dc
Inline fuse rating - 15 A @ 12 V dc & 8 A @ 24 V dc
Thermal breaker rating - 20 A @ 12 V dc & 10 A @ 24 V dc
NETWORK
Network connection ports - 4 x RayNet connection ports (10/100/1000 Mbits/s)
Network connection ports - 4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE classes 0 to 4, with 30 W maximum power available for each port.
Note:
- You can mix a combination of PoE and non-PoE devices simultaneously, for a total of 8 devices (maximum PoE devices = 4; maximum non-PoE dvices = 8).
- In order to sufficiently power PoE devices, the network switch's power supply must exceed 10.8 V dc.
IEEE Standard - Conforms to IEEE 802.3at
ENVIRONMENTAL
Operating temperature: –25 °C (–13 °F) to +55 °C (131 °F)
Non-operating temperature: –30 °C (–22 °F) to +70 °C (158 °F)
Relative humidity: up to 93% @ 40 °C (104 °F)
Waterproof rating: IPx6 & IPx7
CONFORMANCE
Standards
- EN 60945:2002 (Europe, Australia, New Zealand)
- ICES-003 (Canada)
- CFR47 Part 15 (USA)
- IACS section E10 (Japan/China)
Product markings
- UKCA
- CE
- Australian Tick
- WEEE Directive

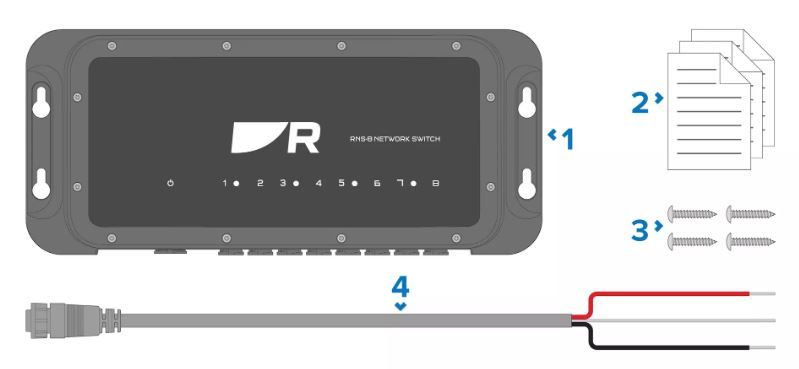

WHAT'S IN THE BOX?
1. RNS-8 Network switch
2. Documentation pack
3. Fixing screws, x4 (M4, 8.94 x 25 mm)
4. Power cable, 1.5 m (4.9 ft)
