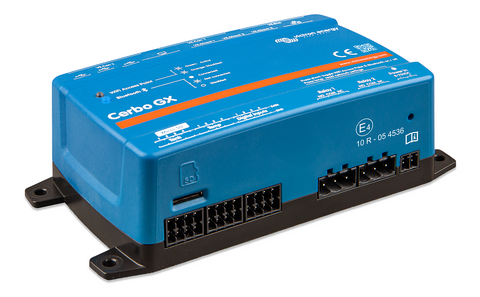

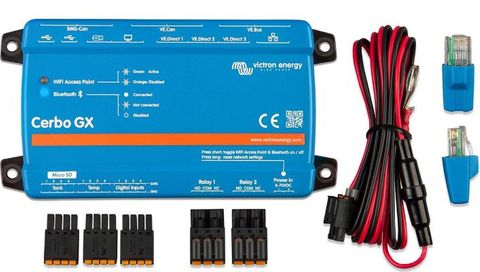

Victron Cerbo GX Communication Centres
The Victron Cerbo GX all-new communication centre allows you to always have perfect control over your system from wherever you are and maximizes its performance.
Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the GX Touch 50 or 70 screen, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.
Cerbo GX: | |
Supply voltage: | 8 – 70V DC |
Mounting: | Wall or DIN rail (35mm)(2) |
VE.Direct ports (always isolated): | 3 (3) |
VE.Bus (always isolated): | 2 paralleled RJ45 sockets |
VE.Can: | yes - non isolated |
Outer dimensions (h x w x d): | 78 x 154 x 48 mm |
Operating temperature range: | -20 to +50°C |
GX Touch 50: | |
Mounting: | With included mounting accessories |
Display Resolution: | 800 x 480 |
Outer dimensions (h x w x d) | 87 x 128 x 12.4 mm |
Cable length: | 2m |
