Victron EV Charging Station -  22 kW High power EV Charging Station

The EV Charging Station has three-phase and single-phase capabilities. It delivers a maximum of 22 kW AC in three-phase or 7.3 kW in single-phase mode.  WiFi Communication WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point or Station mode for both, the initial setup and monitoring.

Easy operation and control via Bluetooth and the VictronConnect App. Get full control and overview of all operating parameters and session statistics at a glance. Light Ring for fast viewing the device state. Fully programmable RGB Light Ring around the charging port to quickly determine the device state. It can be programmed from the integrated web interface to display different light effects based on the current state (disconnected, charging, charged etc.).

Three working modes available: 1. Manual Mode to configure output current Manual mode allows configurable output current between 6-32 A. The charging power can be regulated in different ways: by using the web interface, from a GX device and VRM and via VictronConnect. It allows to manually start or stop the charging process when a vehicle is connected to the charging station. 2. Automatic Mode to ensure maximum PV system efficiency Detects when excess power is available and uses only that power to charge the vehicle. 3. Scheduled Mode to charge the EV at certain time intervals. A fully programmable scheduler allows charging at different time intervals, for example at certain times during the night when grid energy is cheaper.

Integration with GX devices and VRM Control and monitor the EV Charging Station NS from a GX device touch display and the Remote Console and the VRM Portal. The VRM Portal also offers real time and custom reports for configurable time periods.

Code Image Product Details Stock Price Quantity Enquire
EVC200300200
Victron EV Charging Stations
EVC200300200
EV Charging Station NS with Blue Front
Stock Level:
Available
Stock Level:
Available
$1,873.05 Incl. GST
Enquire
EVC200300310
Victron EV Charging Stations
EVC200300310

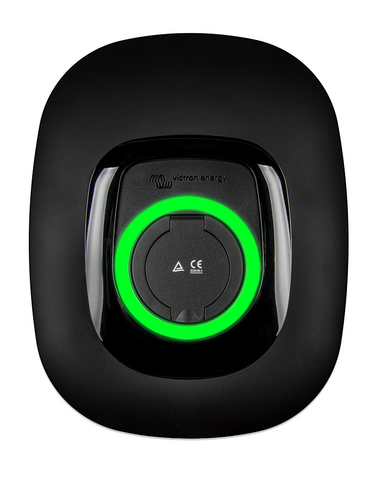

Black Front for EV Charging Station NS
Stock Level:
Available
Stock Level:
Available
$63.33 Incl. GST
Enquire
EVC200300410
Victron EV Charging Stations
EVC200300410

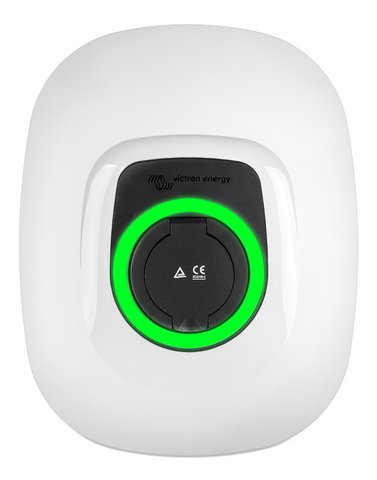

White Front for EV Charging Station NS
Stock Level:
Low Stock
Stock Level:
Low Stock
$63.33 Incl. GST
Enquire
EVC300400300
Victron EV Charging Stations
EVC300400300

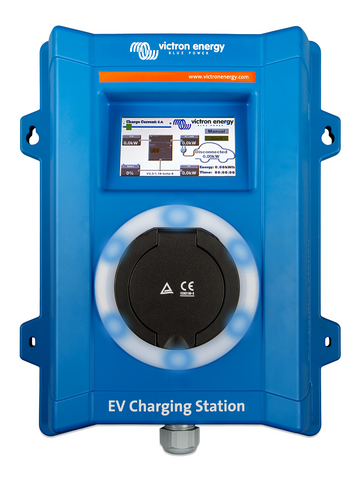

EV Charging Station
Stock Level:
Available
Stock Level:
Available
$1,133.00 Incl. GST
Enquire
