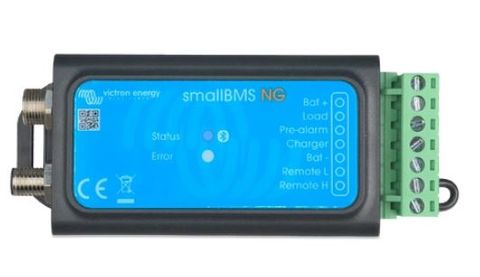

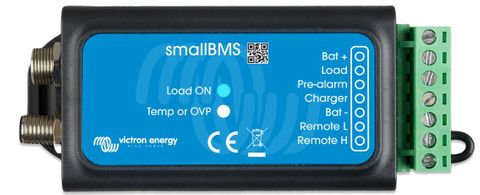

Victron Small BMS
The Victron Small BMS are designed for use with Victron Lithium batteries. They offer a streamlined and cost-effective solution for managing your battery banks and protecting your batteries preventing overcharging or over discharging. For use with Victron Batteries only.
| Small BMS 12/200 | |
| Normal operating input voltage range: | 8-70VDC |
| Current draw normal operation: | 2.2 mA (excluding Load output and Charger output current) |
| Current draw, low cell voltage: | 1.2mA |
| Current draw, remote off: | 1.2mA |
| Load output: | Normally high (Vbat – 0.1V) Source current limit: 1A (not short circuit protected) Sink current: 0A (output free floating) |
| Charger output: | Normally high (Vbat –0.6V) Source current limit: 10mA (short circuit protected) Sink current: 0A (output free floating) |
| Pre-alarm: | Normally free floating In case of alarm: output voltage Vbat -0.1V Maximum output current: 1A (not short circuit protected) |
| System on/off: Remote L and Remote H: |
Use modes of the system on-off: a. ON when the L and H terminal are interconnected (switch or relay contact) b. ON when the L terminal is pulled to battery minus (V< 3.5V) c. ON when the H terminal is high (2.9V < VH < Vbat) d. OFF in all other conditions |
| Operating temperature range: | -20 to +50°C 0 - 120°F |
| Humidity: | Max. 95% (non-condensing) |
| Protection, electronics: | IP20 |
Related Products
-

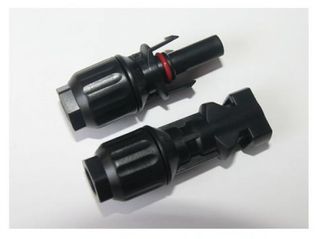

Connector Pair MC4, 1 Male / 1 FemaleSCA520300000RRP:$19.00 Incl. GST
-

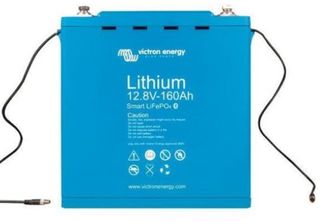

12.8V 160AH Smart BatteryBAT512116610RRP:$1,638.44 Incl. GST
-
