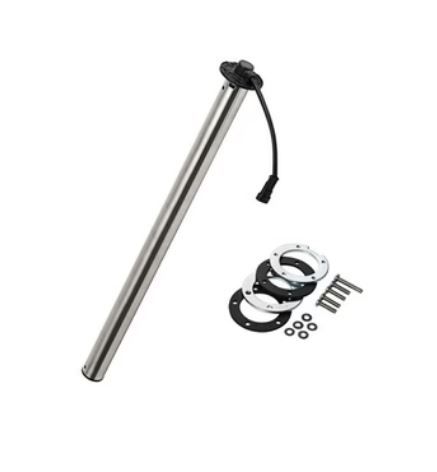

Veratron Stainless Liquid Level Sensor 240-33 Ohms
Veratron’s Dip-Pipe Liquid level sensors are a robust and reliable sensor for efficient tank monitoring.
The Dip-Pipe levels sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside which measures the liquid's level. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state. The sensors are made in various lengths starting from 150 mm up to 1400 mm – when selecting your sensor make sure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.
The Dip-Pipe level sensor features a Plug-and-play interface to the NMEA 2000 network when used in combination with a resistive LinkUp!
Features: TE SuperSeal 1.5 connector 2 pins; Compensation chamber; Flange PA66 GF30; Wiring harness with length of 200 mm; Available in 3 Signal ranges 90 – 4 Ω / 0 – 180 Ω / 240 – 33 Ω; Available in Lengths 150 mm – 1400 mm; Mounting diameter 54 mm; IP65 protection rating
